Temperature module
Nomor Part: 3UF7700-1AA00-0
Kategori
Extension module for motor management device

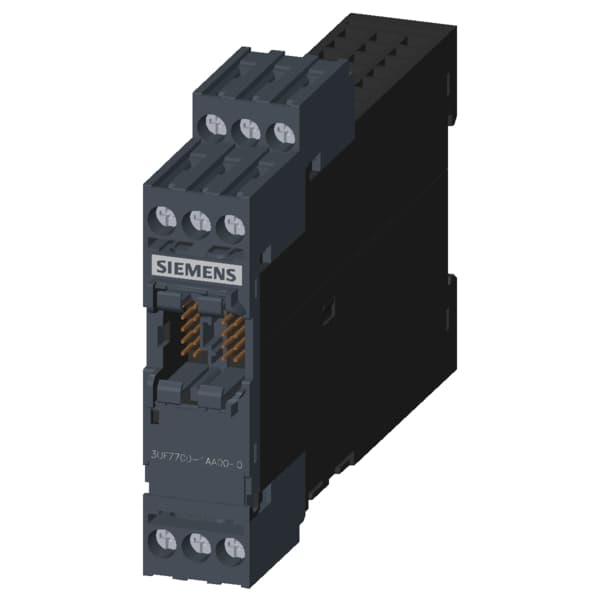

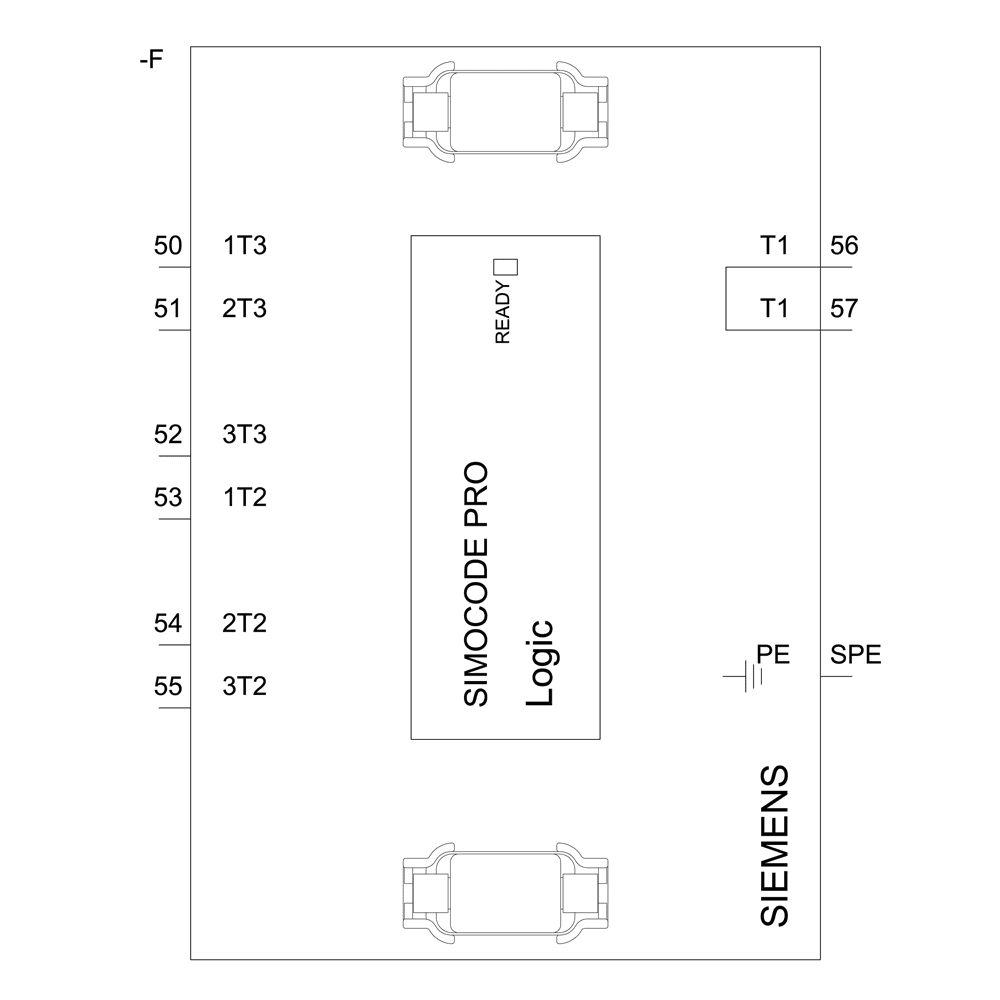

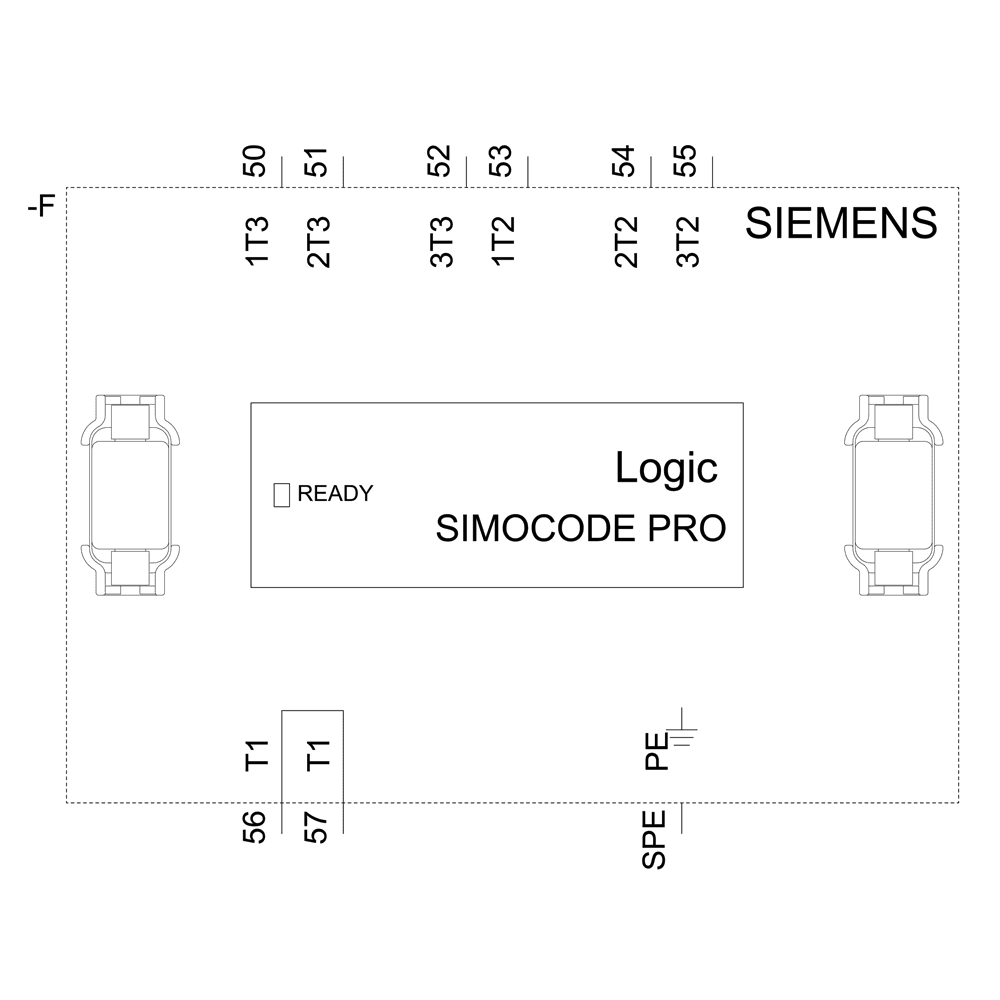

Siemens 3UF7700-1AA00-0. Temperature module, 3 inputs for connection of up to 3 temperature sensors, for SIMOCODE pro V basic unit.
Spesifikasi
Mechanical
Net Weight131 g
Dimensions
Width22.5 mm
Height92 mm
Depth124 mm
Other
fastening methodscrew and snap-on mounting
number of inputs3
mounting positionany
product brand nameSIMOCODE
product designationtemperature module
consumed active power0.2 W
number of analog inputs3
temperature drift per °C0.05 %/°C
number of analog outputs0
number of digital inputs0
Substance Prohibitance (Date)05/01/2012
sensor current for Pt 100 typical1 mA
relative humidity during operation5 ... 95 %
A/D conversion time at sensor circuit500 ms
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
surge voltage resistance rated value4 000 V
reference code according to IEC 81346-2B
touch protection against electrical shockfinger-safe
shock resistance according to IEC 60068-2-2715g / 11 ms
tightening torque with screw-type terminals0.8 ... 1.2 N·m
vibration resistance according to IEC 60068-2-61 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g
type of connection technology of sensor circuit2-wire or 3-wire connection
EMC emitted interference according to IEC 60947-1class A
field-based interference according to IEC 61000-4-310 V/m
tightening torque [lbf·in] with screw-type terminals7 ... 10.3 lbf·in
galvanic isolation between inputs and electronicsNo
sensor current for Pt 1000/KTY 83-110/KTY 84/NTC typical0.2 mA
number of outputs as contact-affected switching element0
relative temperature-related measurement deviation at 20 °C2 %
design of the sensor for temperature measurement connectablePT100 / PT1000 / KTY83-110 / KTY84 / NTC
type of electrical connection for auxiliary and control circuitscrew-type terminals
