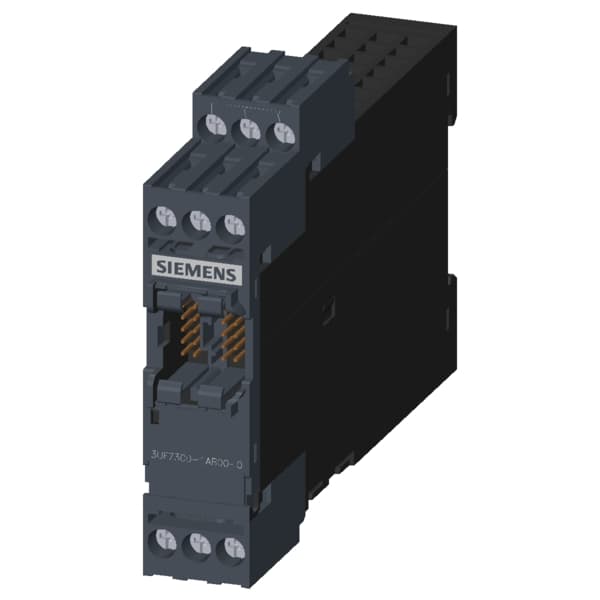

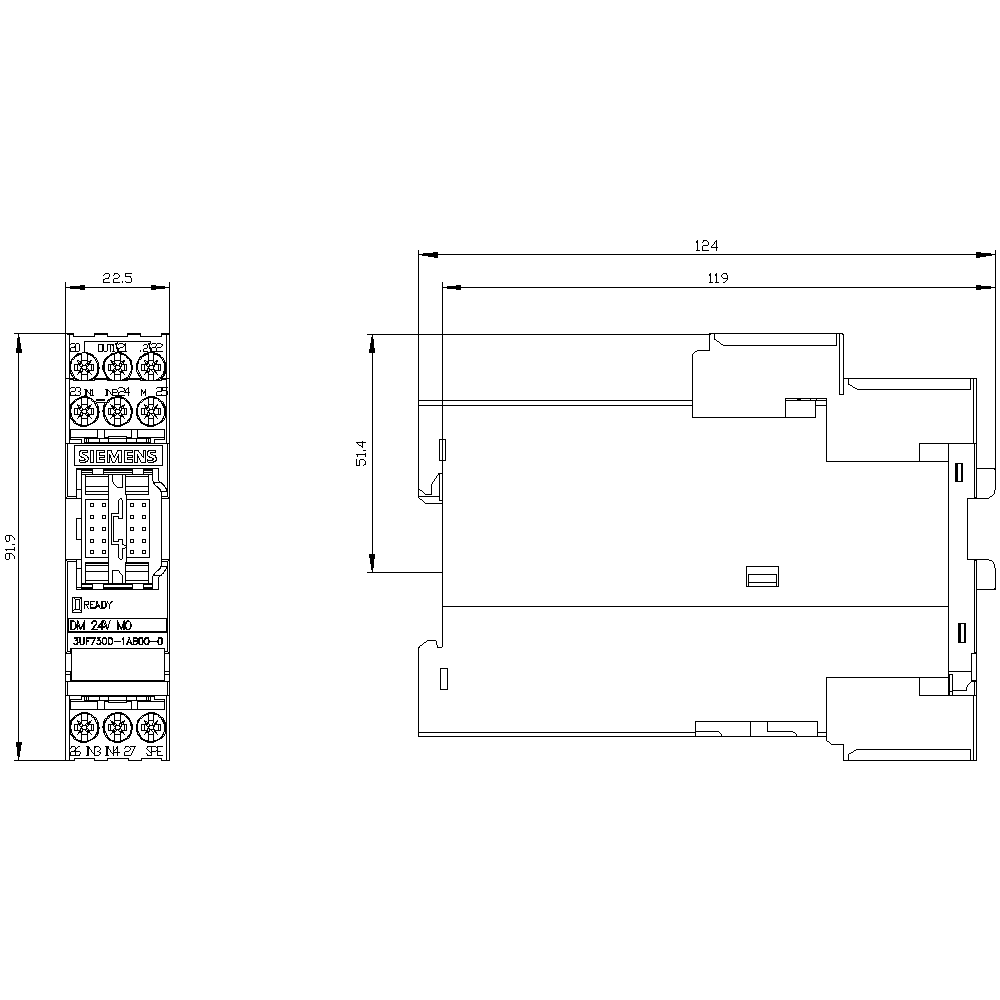

fastening methodscrew and snap-on mounting

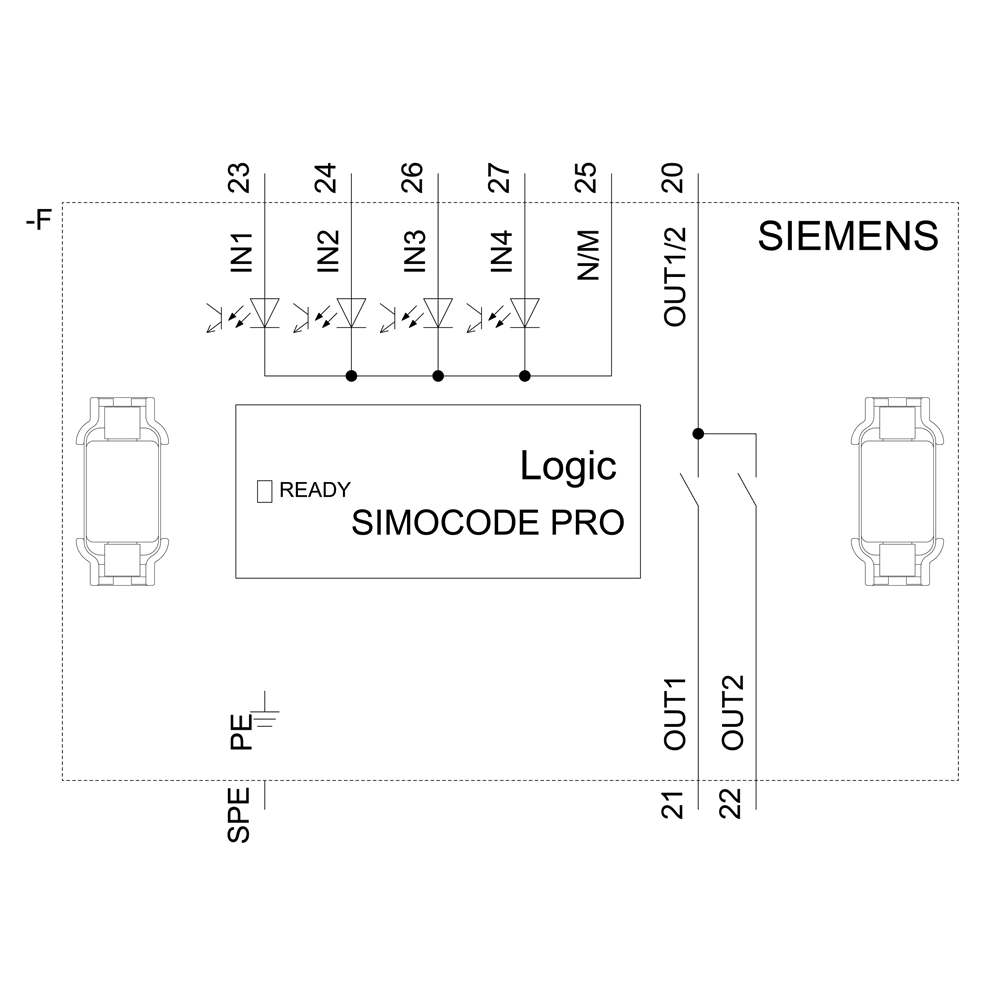

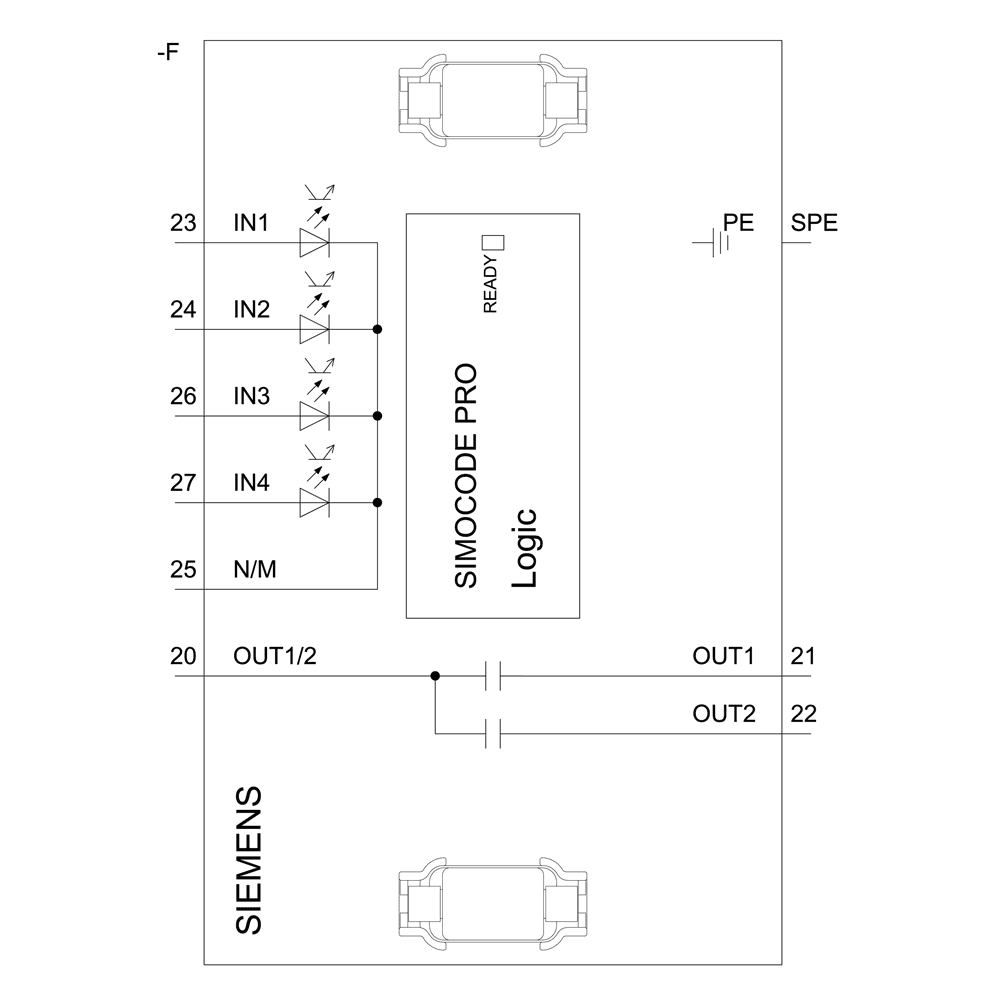

number of inputs4
mounting positionany
number of outputs2
product brand nameSIMOCODE
switching behaviormonostable
product designationdigital modules
consumed active power0.7 W
number of analog inputs0
number of analog outputs0
number of digital inputs4
product type designationDM mono
Substance Prohibitance (Date)05/01/2012
number of semiconductor outputs0
relative humidity during operation5 ... 95 %
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
surge voltage resistance rated value4 000 V
reference code according to IEC 81346-2K
wire length for digital signals maximum300 m
control supply voltage at DC rated value24 V
property of contacts of the relay outputsFloating NO contacts (NC reaction parameterizable via internal signal conditioning), connected to common ground, can be freely assigned to the control functions (e.g. line, star (wye), delta contactor or signaling of the operating state)
touch protection against electrical shockfinger-safe
reference code according to IEC 81346-2:2019K
shock resistance according to IEC 60068-2-2715g / 11 ms
tightening torque with screw-type terminals0.8 ... 1.2 N·m
design of short-circuit protection per outputFuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit-breaker C char.: 1.6 A (IEC 60947-5-1) or 6 A (I_K < 500 A)
electrical endurance (operating cycles) typical100 000
type of voltage of the control supply voltageDC
vibration resistance according to IEC 60068-2-61 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
EMC emitted interference according to IEC 60947-1class A
field-based interference according to IEC 61000-4-310 V/m
input voltage at digital input at DC rated value24 V
mechanical service life (operating cycles) typical10 000 000
tightening torque [lbf·in] with screw-type terminals7 ... 10.3 lbf·in
contact rating of auxiliary contacts according to ULB300 / R300
number of outputs as contact-affected switching element2
conducted HF interference emissions according to CISPR11corresponds to degree of severity A
field-bound HF interference emission according to CISPR11corresponds to degree of severity A
(electrically) protective separation according to IEC 60947-1All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information)
certificate of suitability according to ATEX directive 2014/34/EUBVS 06 ATEX F001
insulation voltage with degree of pollution 3 at AC rated value300 V
type of electrical connection for auxiliary and control circuitscrew-type terminals
product component removable terminal for auxiliary and control circuitYes
explosion device group and category according to ATEX directive 2014/34/EUII (2) G, II (2 ) D, I (M2)
