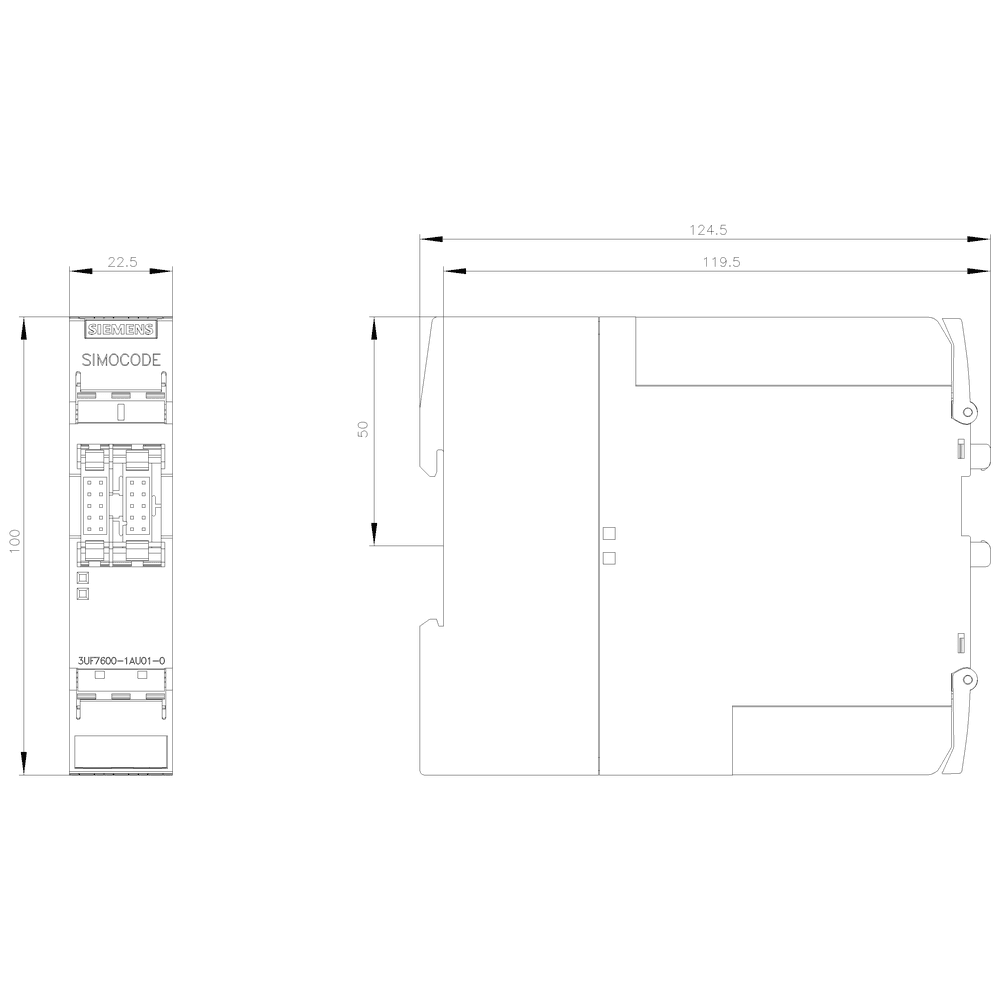

number of inputs4
mounting positionany
number of outputs2
product brand nameSIMOCODE
switching behaviormonostable
product designationMultifunction module
consumed active power0.8 W
response time maximum0 s
number of analog inputs0
temperature drift per °C0.05 %/°C
number of analog outputs0
number of digital inputs4
Substance Prohibitance (Date)05/01/2012
type of current for monitoringType A (alternating currents and pulsing DC residual currents)
number of semiconductor outputs0
sensor current for Pt 100 typical1 mA
control supply voltage frequency 150 ... 60 Hz
relative humidity during operation10 ... 95 %
A/D conversion time at sensor circuit500 ms
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
surge voltage resistance rated value4 000 V
reference code according to IEC 81346-2K
measurable line frequency initial value16 Hz
product function ground fault detectionYes
wire length for digital signals maximum200 m
control supply voltage at DC rated value110 ... 240 V
adjustable current response value current40 ... 0.03 A
measurable line frequency full-scale value400 Hz
product function residual current displayYes
property of contacts of the relay outputsFloating NO contacts (NC reaction parameterizable via internal signal conditioning), of which 2 relay outputs connected to common ground and one relay output separately, can be freely assigned to the control functions (e.g. line, star (wye), delta contactor or signaling of the operating state)
touch protection against electrical shockfinger-safe
tightening torque with screw-type terminals0.6 ... 0.8 N·m
buffering time in the event of power failure0 s
design of short-circuit protection per outputFuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit-breaker C char.: 1.6 A (IEC 60947-5-1) or 6 A (I_K < 500 A)
electrical endurance (operating cycles) typical100 000
type of voltage of the control supply voltageAC/DC
type of connection technology of sensor circuit2-wire or 3-wire connection
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
EMC emitted interference according to IEC 60947-1class A
field-based interference according to IEC 61000-4-310 V/m
input voltage at digital input at DC rated value230 V
mechanical service life (operating cycles) typical10 000 000
tightening torque [lbf·in] with screw-type terminals5.2 ... 7 lbf·in
galvanic isolation between inputs and electronicsNo
contact rating of auxiliary contacts according to ULB300 / R300
sensor current for Pt 1000/KTY 83-110/KTY 84/NTC typical0.2 mA
number of outputs as contact-affected switching element2
conducted HF interference emissions according to CISPR11corresponds to degree of severity A
field-bound HF interference emission according to CISPR11corresponds to degree of severity A
relative temperature-related measurement deviation at 20 °C2 %
(electrically) protective separation according to IEC 60947-1All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information)
design of the sensor for temperature measurement connectablePT100 / PT1000 / KTY83-110 / KTY84 / NTC
relative measurement deviation of residual current transformer7.5 %
certificate of suitability according to ATEX directive 2014/34/EUBVS 06 ATEX F001
insulation voltage with degree of pollution 3 at AC rated value300 V
type of electrical connection for auxiliary and control circuitscrew-type terminals
diameter of inlet opening of connectable residual current transformer35 ... 210 mm
product component removable terminal for auxiliary and control circuitYes
explosion device group and category according to ATEX directive 2014/34/EUII (2) G, II (2 ) D, I (M2)
diagnostics function at sensor input with residual current transformer open-circuit detectionYes
diagnostics function at sensor input with residual current transformer short-circuit detectionYes
