Aktif
Disconnector module for circuit breaker Size S00/S0
Nomor Part: 3RV2928-1A
Kategori
Phase separation plate for power circuit breaker

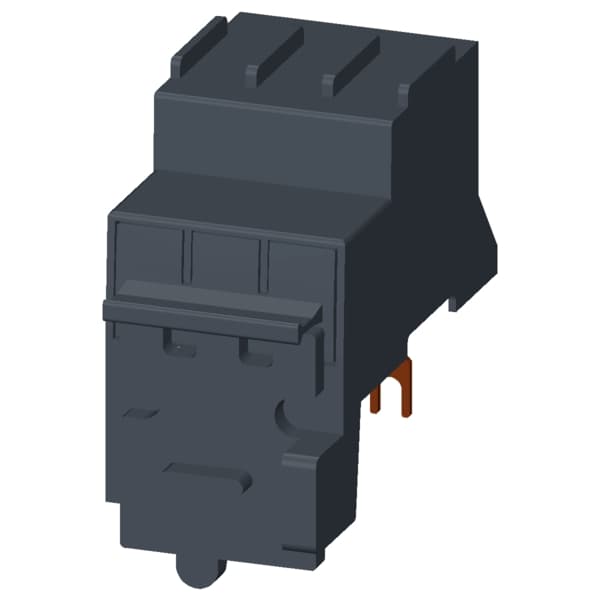

Siemens 3RV2928-1A. Disconnector module for circuit breaker Size S00/S0.
Spesifikasi
Mechanical
Net Weight0.136 kg

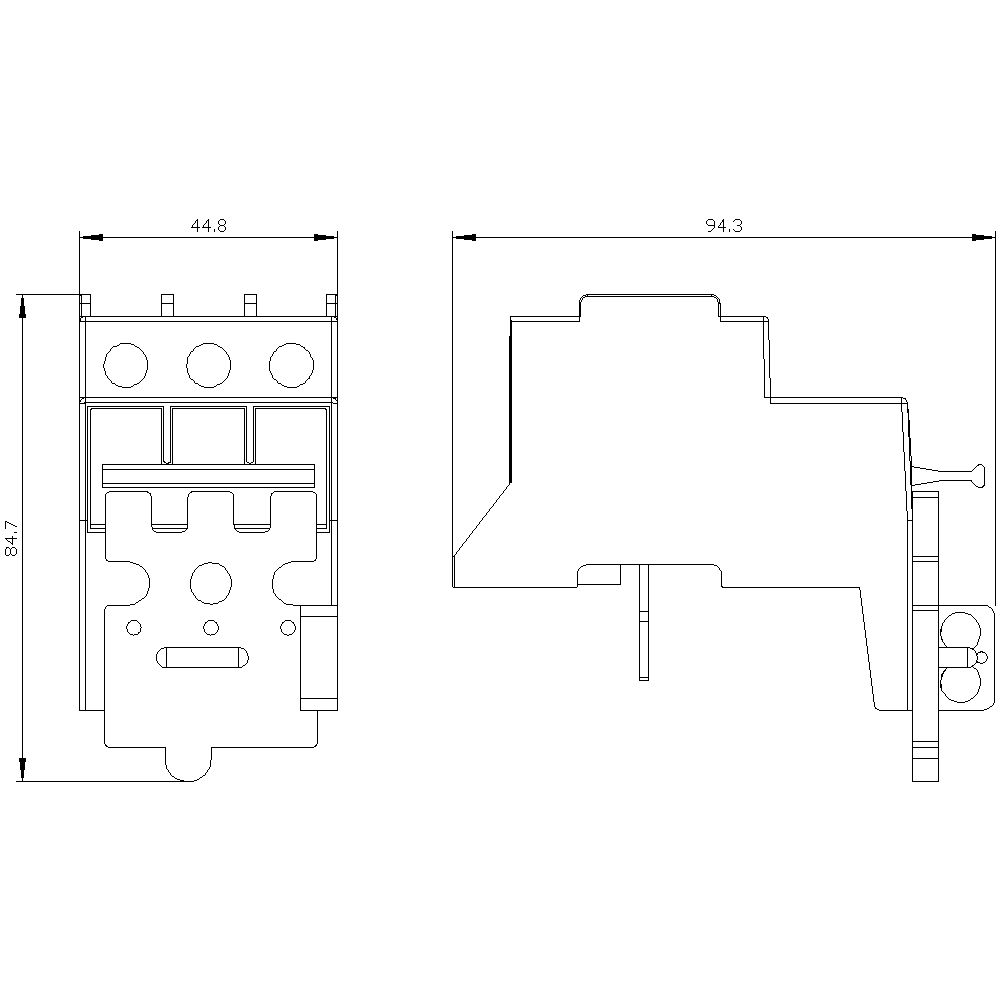

Dimensions
Width45 mm
Height51 mm
Depth94 mm
Other
product categoryIsolator modules
product brand nameSIRIUS
product designationdisconnector module
suitability for usemotor circuit breaker
design of the productvisible isolating distance, can be locked in disengaged position
product type designation3RV29
certificate of suitabilityCE / UL / CSA / CCC
size of the circuit-breakerS0
Substance Prohibitance (Date)10/01/2009
AWG number as coded connectable conductor cross section for main contacts0 ... 0
