Aktif
Timing relay
Nomor Part: 3RP2505-1CW30
Kategori
Timer relay

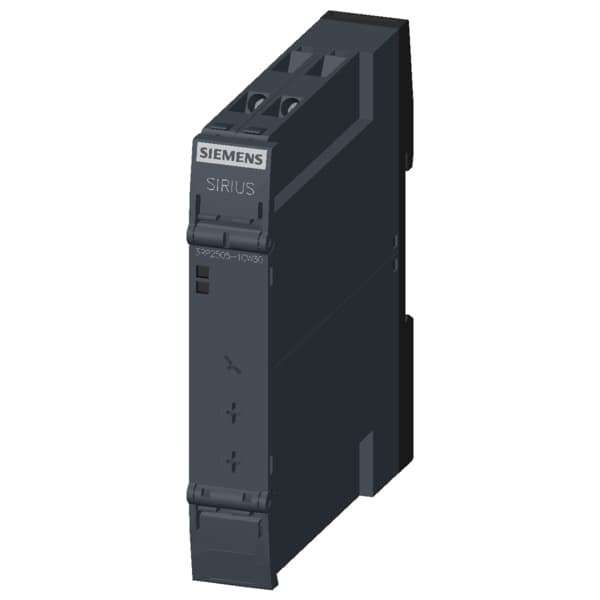

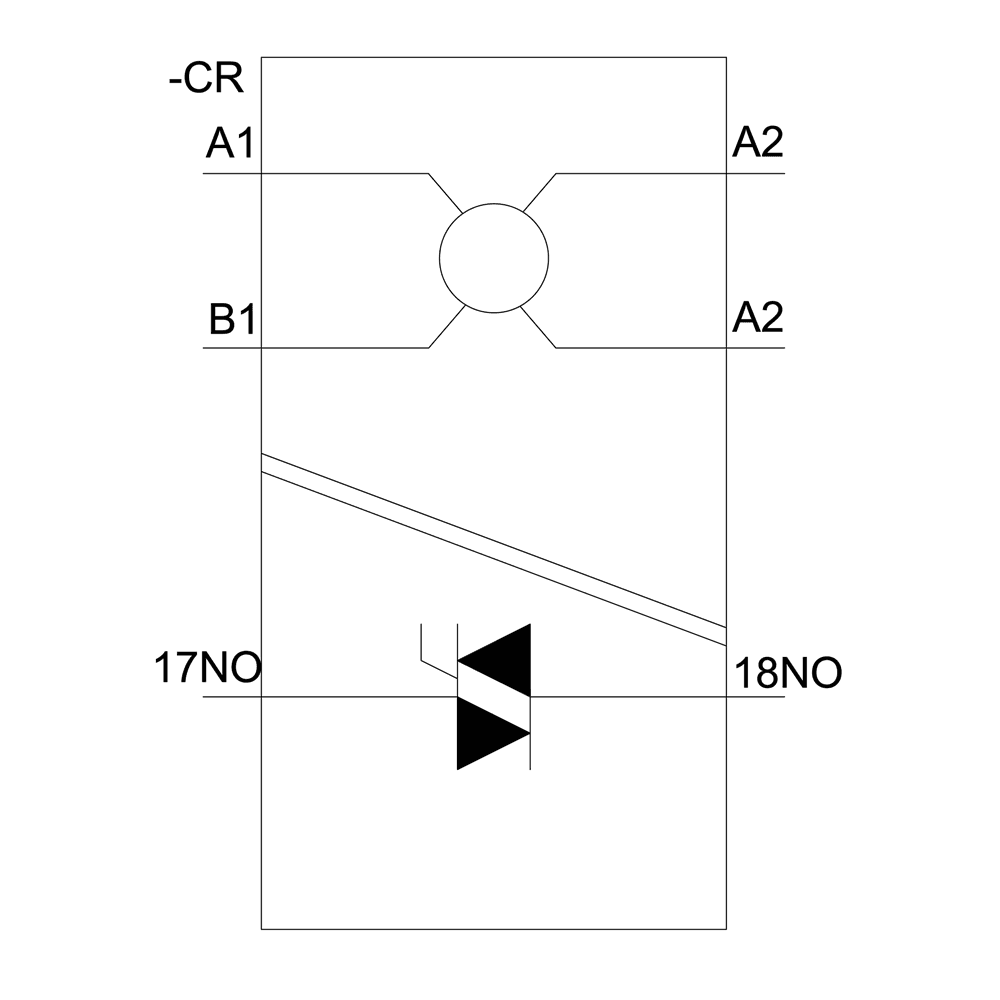

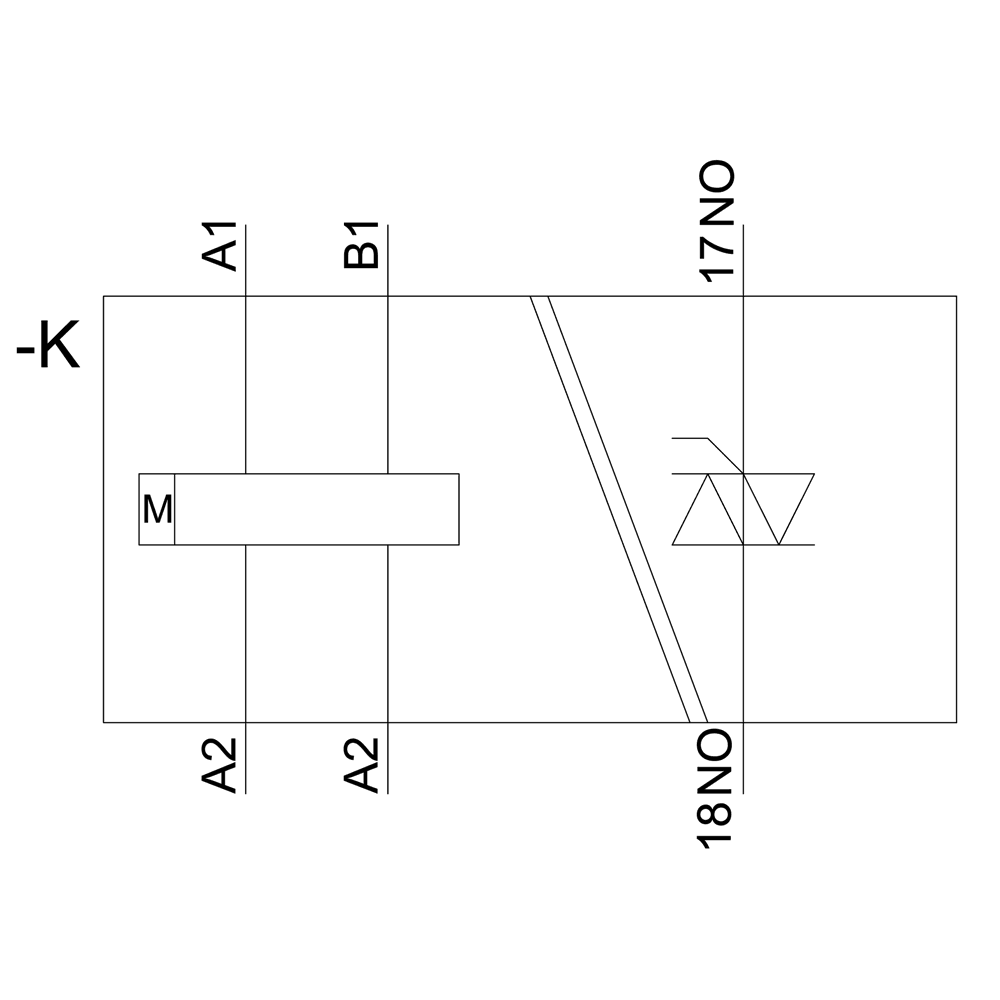

Siemens 3RP2505-1CW30. Timing relay, Multifunction 1 NO semiconductor 13 functions 7 time ranges (0.05 s...100 h) 12-240 V AC/DC at 50/60 Hz AC with LED, Screw terminal.
Spesifikasi
Mechanical
Net Weight0.141 kg

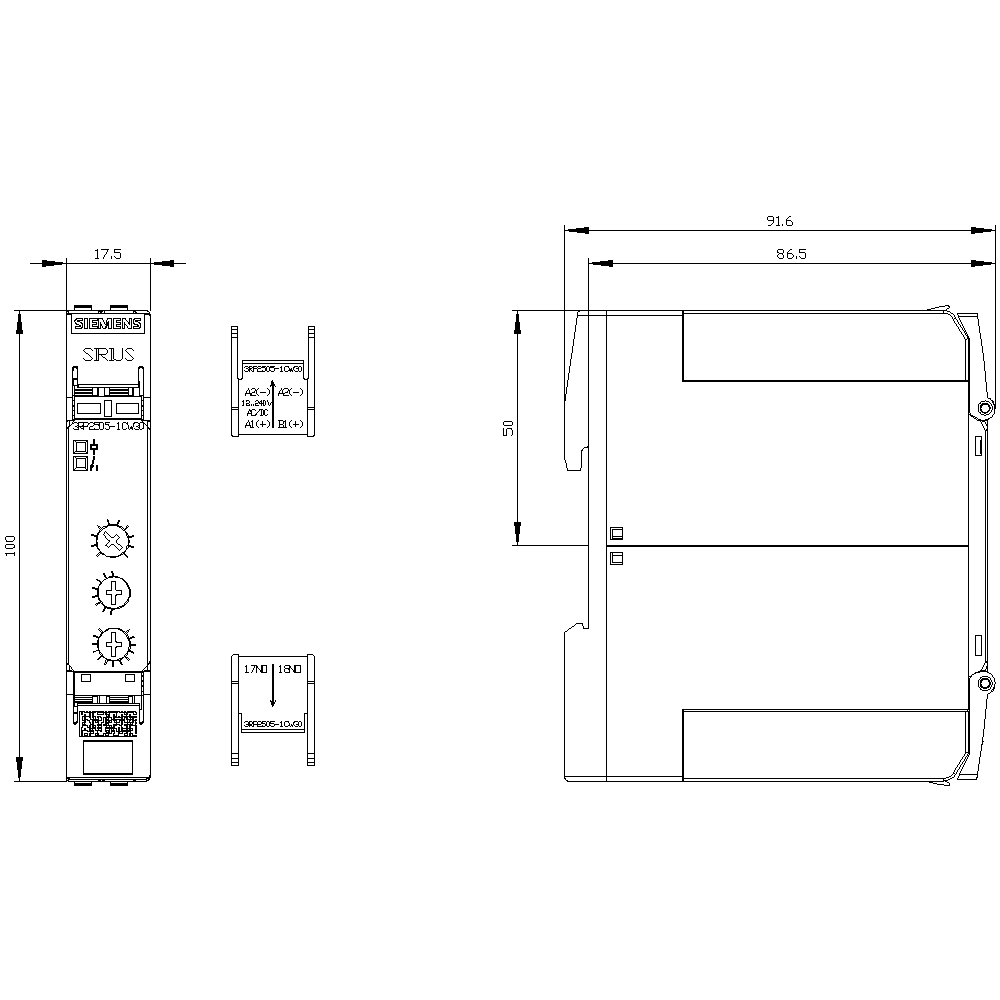

Dimensions
Width17.5 mm
Height100 mm
Depth90 mm
Other
— upwards0 mm
— forwards0 mm
— backwards0 mm
— downwards0 mm
— at the side0 mm
recovery time400 ms
adjustable time0.05 s ... 100 h
thermal current1 A
fastening methodscrew and snap-on mounting onto 35 mm DIN rail
minimum ON period35 ms
mounting positionany
tightening torque0.6 ... 0.8 N·m
product brand nameSIRIUS
degree of pollution3
product designationtiming relay
power loss [W] maximum2 W
design of the product13 functions
power supply influence1% in the whole voltage range to the set runtime
product type designation3RP25
relative repeat accuracy1 %; +/-
residual current maximum0.5 mA
Substance Prohibitance (Date)09/12/2014
category according to EN 954-1none
control supply voltage 1 at DC12 ... 240 V
test voltage for isolation test2.5 kV
control supply voltage frequency 150 ... 60 Hz
relative humidity during operation10 ... 95 %
EMC immunity according to IEC 61812-1corresponds to degree of severity 3
surge voltage resistance rated value4 000 V
reference code according to IEC 81346-2K
influence of the surrounding temperature1% in the whole temperature range to the set runtime
product extension optional remote controlNo
product extension required remote controlNo
design of the control terminal non-floatingYes
shock resistance according to IEC 60068-2-2711g / 15 ms
design of the thread of the connection screwM3
type of voltage of the control supply voltageAC/DC
vibration resistance according to IEC 60068-2-610 ... 55 Hz / 0.35 mm
switching capacity current with inductive load0.01 ... 1 A
operating frequency with 3RT2 contactor maximum5 000 1/h
electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge
EMC emitted interference according to IEC 61812-1ambience A (industrial sector)
field-based interference according to IEC 61000-4-310 V/m
mechanical service life (operating cycles) typical10 000 000
relative setting accuracy relating to full-scale value5 %; +/-
installation altitude at height above sea level maximum2 000 m
protection class IP on the front according to IEC 60529IP20
product feature protective coating on printed-circuit boardNo
electrical endurance (operating cycles) at AC-15 at 230 V typical300 000
type of electrical connection for auxiliary and control circuitscrew-type terminals
product component removable terminal for auxiliary and control circuitYes
design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 4 A
insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V
