— upwards0 mm
— forwards0 mm
— backwards0 mm
— downwards0 mm
— at the side0 mm
recovery time150 ms
adjustable time0.05 s ... 100 h
thermal current5 A
fastening methodscrew and snap-on mounting onto 35 mm DIN rail
minimum ON period35 ms
mounting positionany
tightening torque0.8 ... 1.2 N·m
product brand nameSIRIUS
type of insulationBasic insulation
degree of pollution3

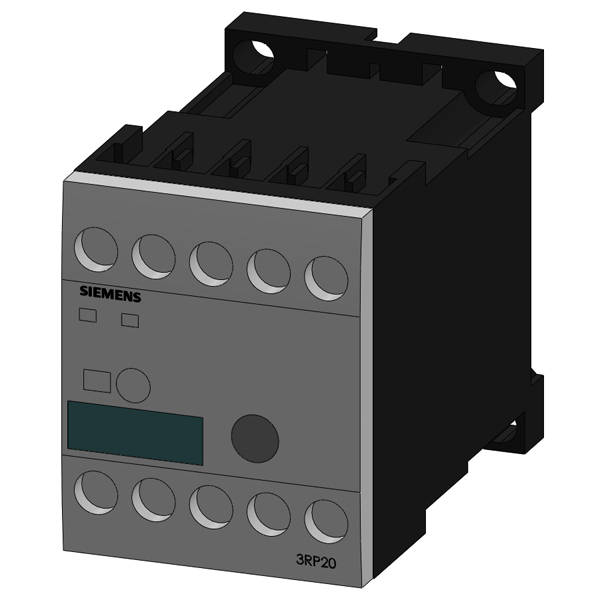

product designationtiming relay
power loss [W] maximum2 W
design of the productMultifunctional
power supply influence±1 %
product type designation3RP20
relative repeat accuracy1 %; +/-
Substance Prohibitance (Date)05/01/2012
category according to EN 954-1none
control supply voltage 1 at DC24 ... 240 V
material of switching contactsAgSnO2
test voltage for isolation test2 kV
control supply voltage frequency 150 ... 60 Hz
relative humidity during operation10 ... 95 %
EMC immunity according to IEC 61812-1EN 61000-6-2
surge voltage resistance rated value4 000 V
reference code according to IEC 81346-2K
influence of the surrounding temperature±5 %
contact reliability of auxiliary contactsone incorrect switching operation of 100 million switching operations (17 V, 5 mA)
product extension optional remote controlNo
product extension required remote controlNo
design of the control terminal non-floatingYes
shock resistance according to IEC 60068-2-2711g / 15 ms
design of the thread of the connection screwM3
type of voltage of the control supply voltageAC/DC
vibration resistance according to IEC 60068-2-610 ... 55 Hz / 0.35 mm
operating frequency with 3RT2 contactor maximum5 000 1/h
electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge
EMC emitted interference according to IEC 61812-1EN 61000-6-4(3)
field-based interference according to IEC 61000-4-310 V/m
mechanical service life (operating cycles) typical10 000 000
contact rating of auxiliary contacts according to ULR300 / B300
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
relative setting accuracy relating to full-scale value5 %; +/-
installation altitude at height above sea level maximum2 000 m
protection class IP on the front according to IEC 60529IP20
product feature protective coating on printed-circuit boardNo
electrical endurance (operating cycles) at AC-15 at 230 V typical100 000
type of electrical connection for auxiliary and control circuitscrew-type terminals
product component removable terminal for auxiliary and control circuitNo
design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 4 A
insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V
