Aktif

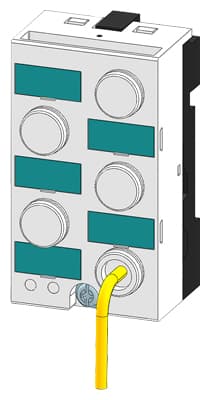

AS-i overvoltage protection module IP67
Nomor Part: 3RK1901-1GA01
Merek
Kategori
Fieldbus, decentr. periphery - function-/technology module
Siemens 3RK1901-1GA01. AS-i overvoltage protection module IP67, for lightning protection zone 2.
Spesifikasi

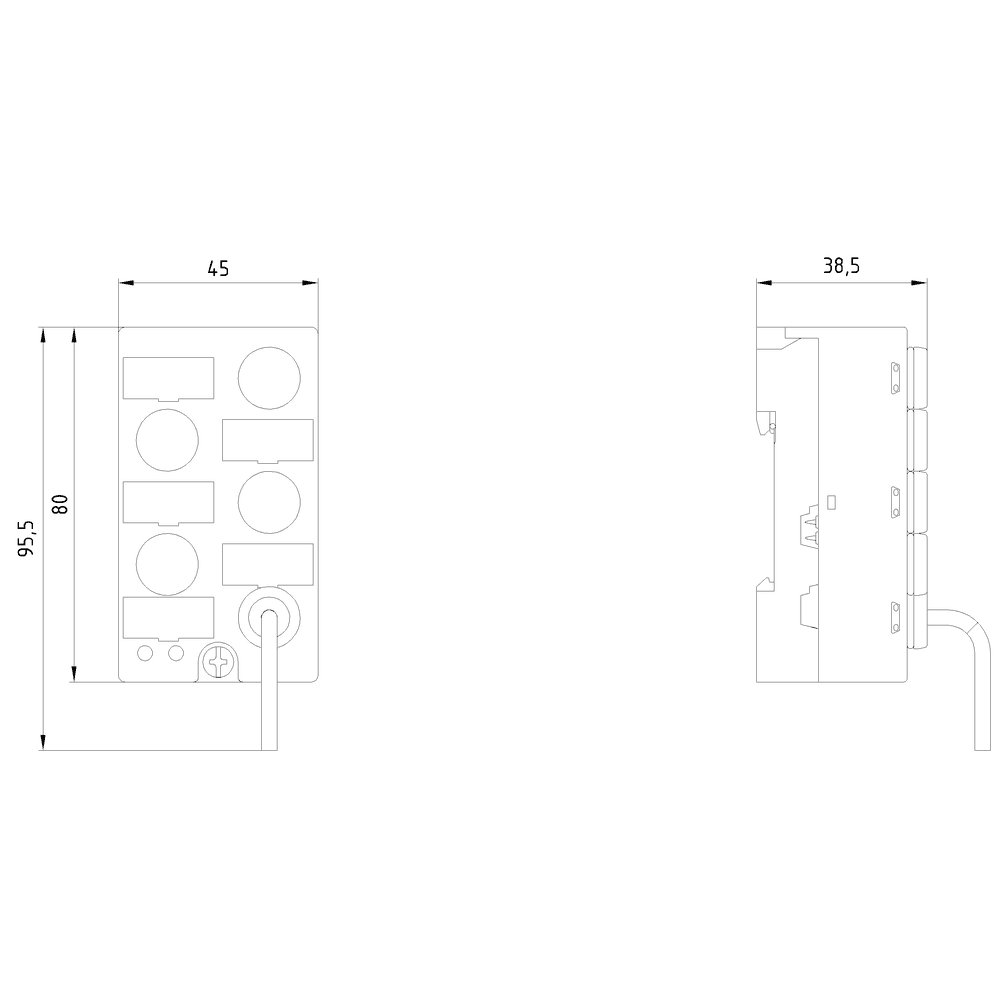

Dimensions
Width45 mm
Height80 mm
Depth25 mm
Other
fastening methodstandard rail mounting/wall mounting
protection class IPIP67
design of the productoveroltage protection modules - modules with special functions
reference code according to EN 61346-2K
protocol is supported AS-Interface protocolNo
reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750E
