profile7.3
input variablemA
output quantitymA

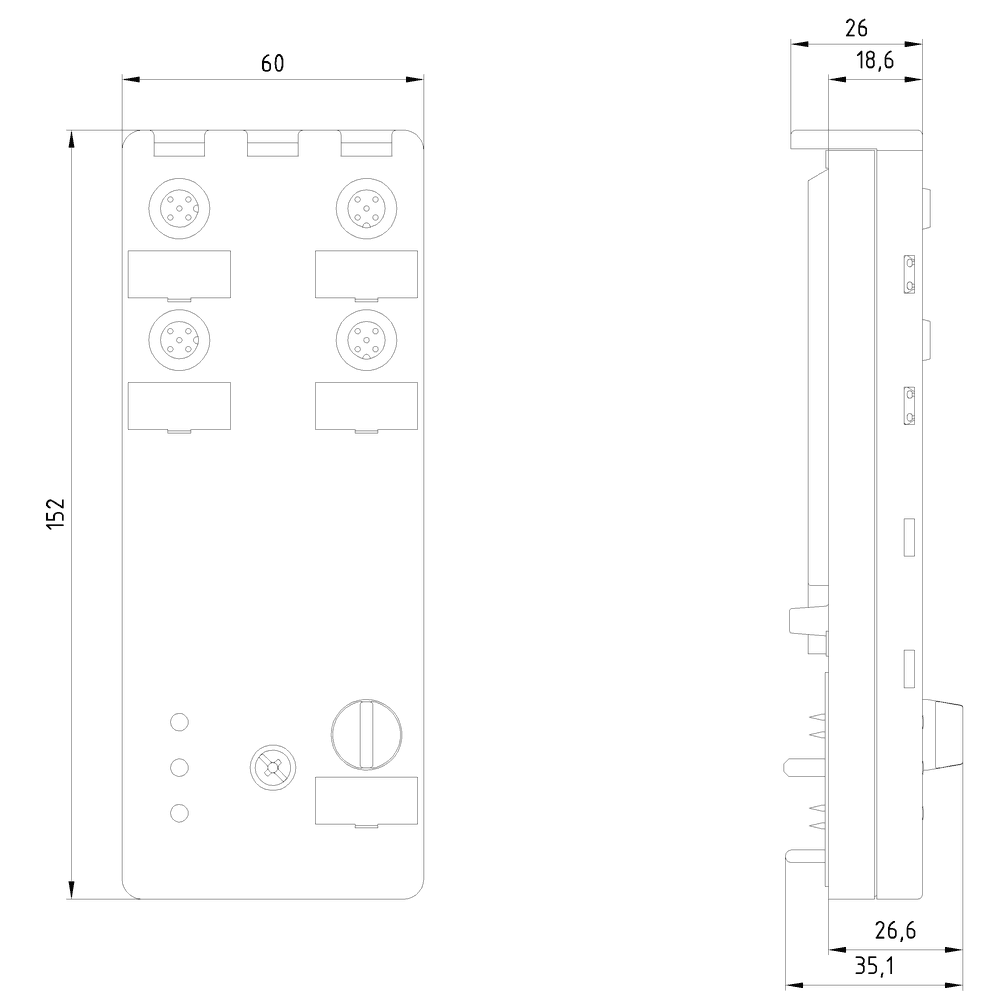

fastening methodstandard rail mounting/wall mounting using mounting plate for K60 compact module
protection class IPIP67

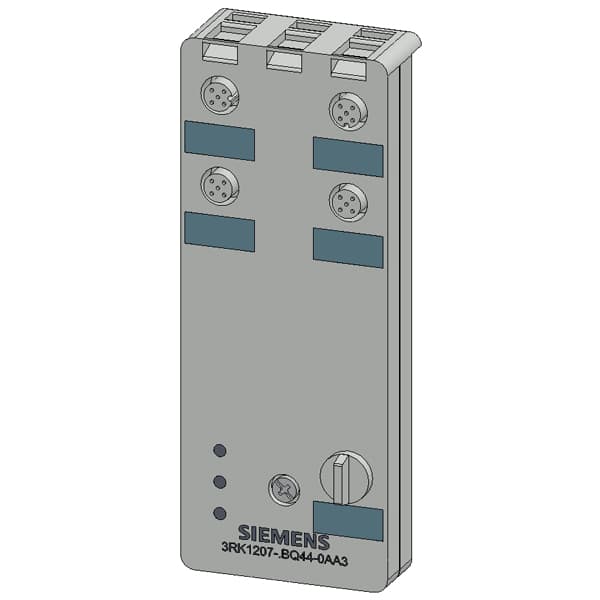

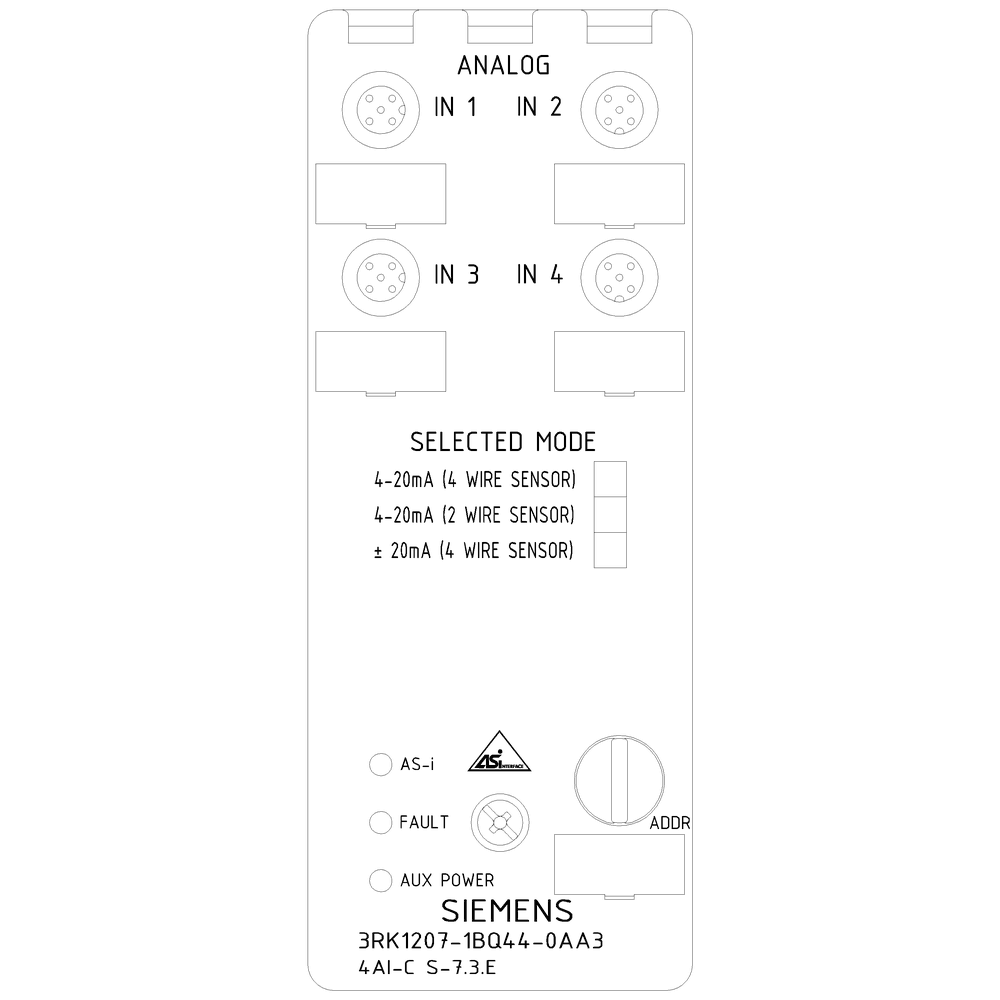

design of the productanalog I/O modules for operation in the field, IP67 - K60
number of analog inputs4
number of analog outputs0
design of the device typeanalog slave

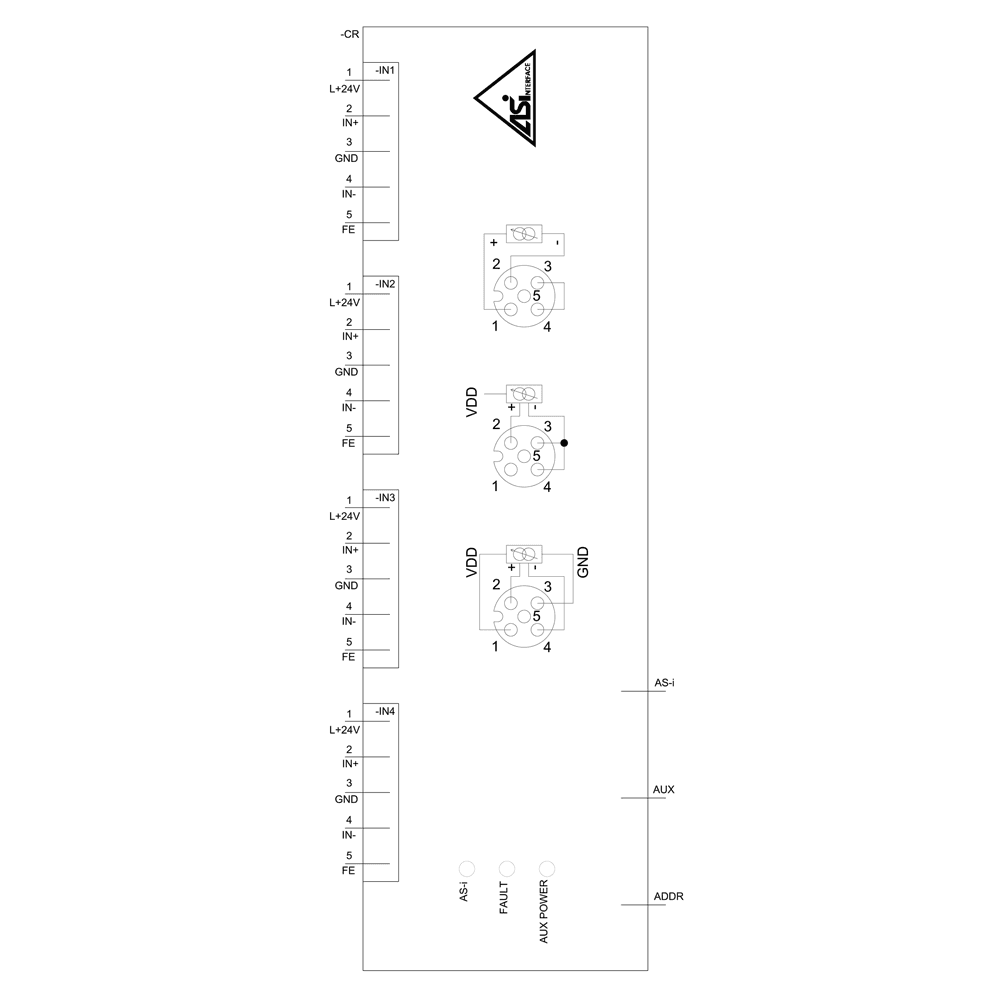

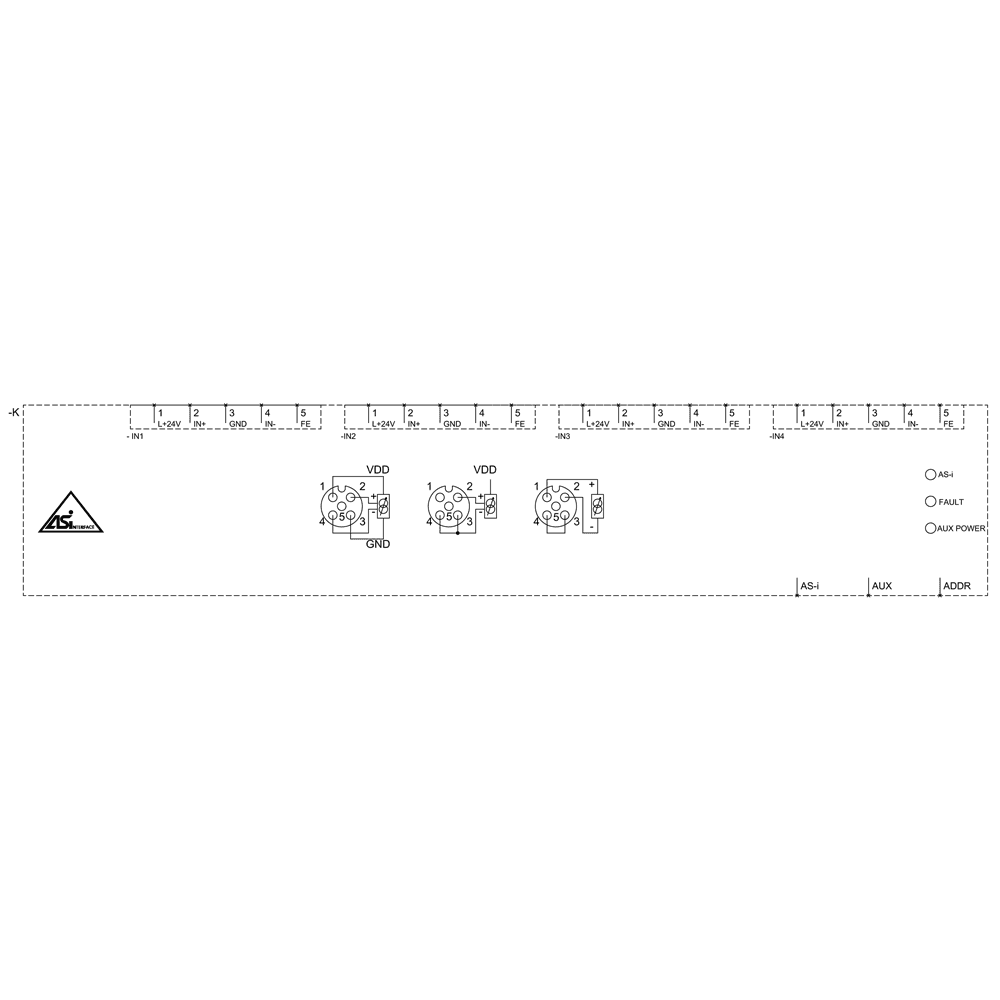

type of connection technology4-conductor
A/D resolution for analog inputs/outputs16
product function input variable parameterizableYes
type of electrical connection of the inputs and outputsM12 screw-type terminals
consumed current from profile conductors of the AS-Interface at 30 V maximum160
