Aktif
AS-Interface counter module S22.5
Nomor Part: 3RK1200-0CG03-0AA2
Merek
Kategori
Fieldbus, decentr. periphery - function-/technology module

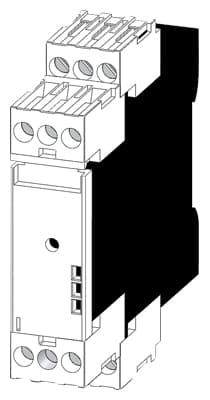

Siemens 3RK1200-0CG03-0AA2. AS-Interface counter module S22.5, 1 DI, counter, IP20 1x 1 counter input, 90 mA, PNP Spring-type terminal Overall width 22.5 mm.
Spesifikasi

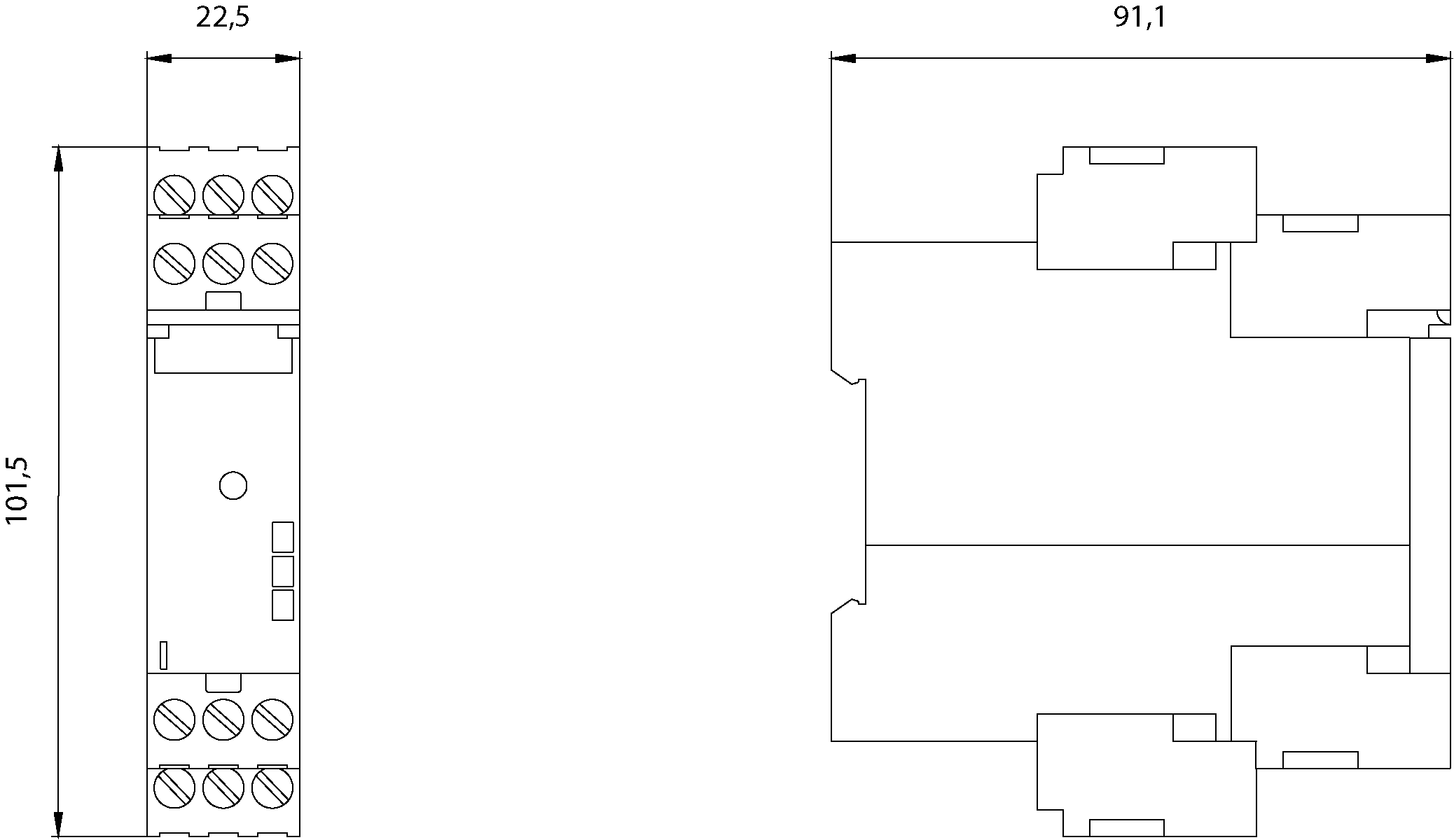

Dimensions
Width22.5 mm
Height103 mm
Depth86 mm
Other
fastening methodstandard rail mounting/wall mounting
protection class IPIP20
design of the productcounter modules - modules with special functions
reference code according to EN 61346-2K
protocol is supported AS-Interface protocolNo
type of electrical connection of the inputs and outputsspring-loaded terminals
ampacity of the sensor supply for all inputs at ambient temperature 40 °C90
reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750A
