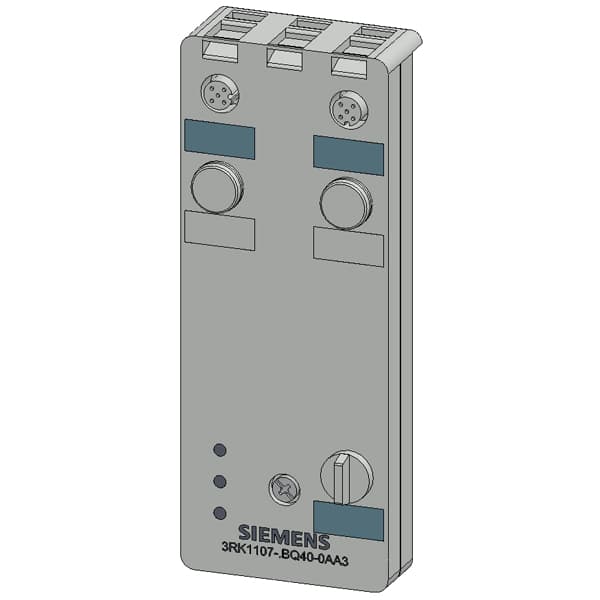

AS-i compact module K60 analog 2 AQ
Nomor Part: 3RK1107-2BQ40-0AA3
Kategori
Fieldbus, decentr. periphery - analogue I/O module
Siemens 3RK1107-2BQ40-0AA3. AS-i compact module K60 analog 2 AQ, IP67 2x 1 output, Voltage +/- 10 V 1..5 V for 2-wire actuators 2 x M12 socket Mounting plate 3RK1901-0CA00 must be ordered separately.
Spesifikasi

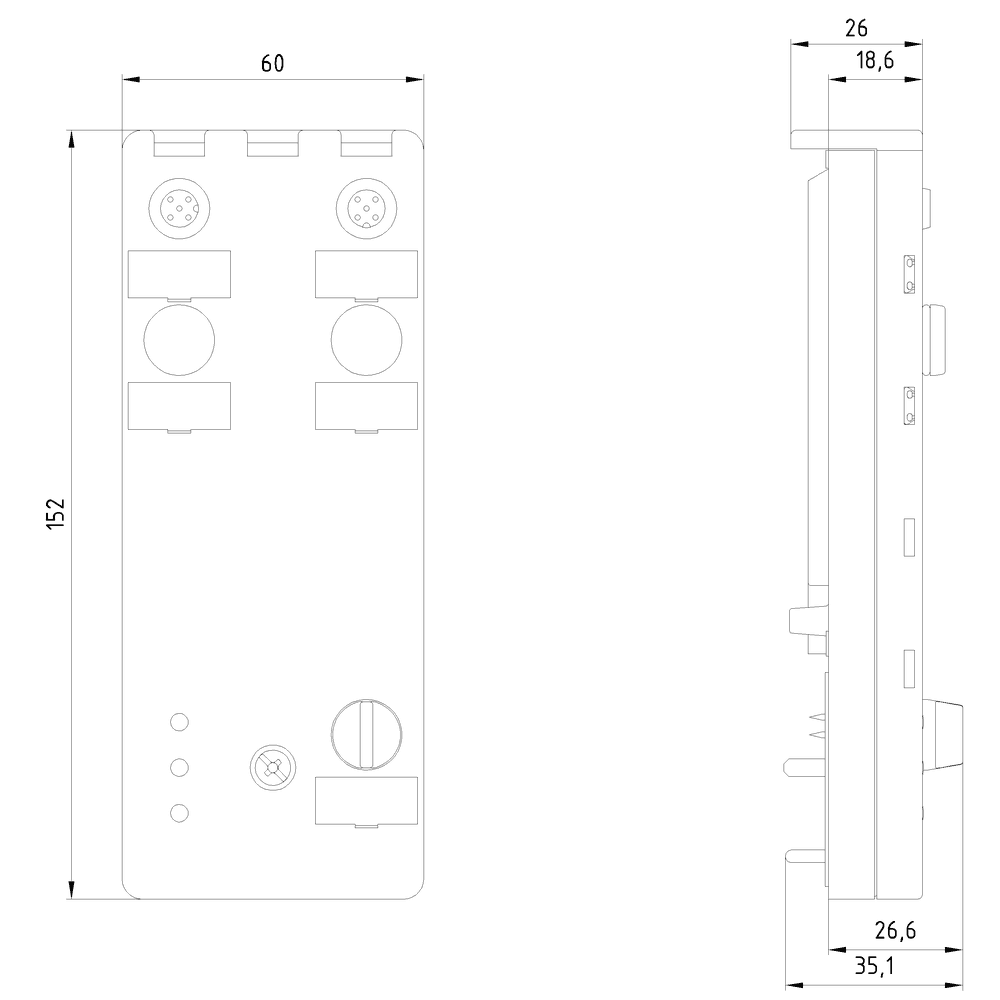

Dimensions
Width60 mm
Height152 mm
Depth29 mm
Other
profile7.3
output quantityV
fastening methodstandard rail mounting/wall mounting using mounting plate for K60 compact module
protection class IPIP67
design of the productanalog I/O modules for operation in the field, IP67 - K60
number of analog inputs0
number of analog outputs2
design of the device typeanalog slave
A/D resolution for analog inputs/outputs12
product function parameterizable output variableYes
type of electrical connection of the inputs and outputsM12 screw-type terminals
consumed current from profile conductors of the AS-Interface at 30 V maximum160
