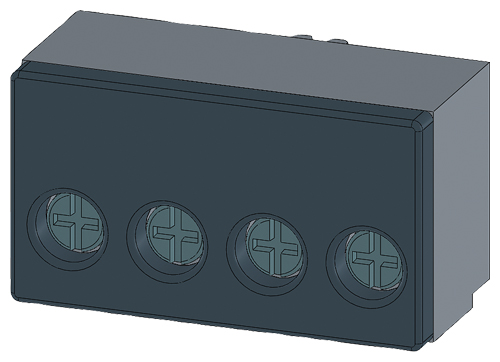

Auxiliary switch 2 NO contacts Connection control circuit: screw terminal
Nomor Part: 3RA6911-1A
Kategori
Rail terminal bar
Siemens 3RA6911-1A. Auxiliary switch 2 NO contacts Connection control circuit: screw terminal.
Spesifikasi
Dimensions
Width45 mm
Height32 mm
Depth25 mm
Other
stripped length10
product brand nameSIRIUS
product designationauxiliary switch compact feeder
— with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
certificate of suitabilityIEC / EN 60947-6-2
relative humidity during operation10 ... 90
reference code according to EN 61346-2K
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts2
touch protection on the front according to IEC 60529Finger-safe, for vertical contact
design of screw-type connection for auxiliary contactsM6
protection class IP on the front according to IEC 60529IP20
tightening torque for auxiliary contacts with screw-type terminals0.8 ... 1.2
type of connectable conductor cross-sections for AWG cables for auxiliary contacts2x (20 ... 16), 2x (18 ... 14), 1x 12
