— solidup to 12 A: 2x (1.5 ... 2.5 mm²), 2x (2.5 ... 6 mm²), up to 32 A: 2x (2.5 ... 6 mm²)
stripped length10
product brand nameSIRIUS

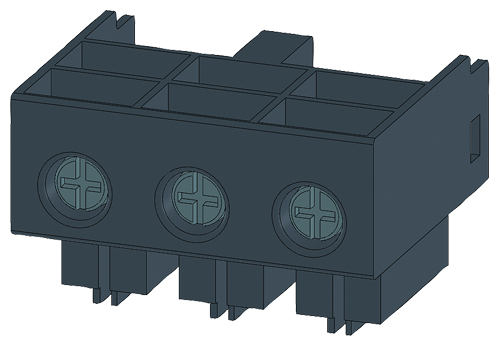

product designationmain circuit terminals (ingoing as well as outgoing)
certificate of suitabilityIEC / EN 60947-6-2
relative humidity during operation10 ... 90
reference code according to EN 61346-2X
— finely stranded with core end processingup to 12 A: 2x (1.5 ... 2.5 mm²), 2x (2.5 ... 6 mm²) up to 32 A: 2x (2.5 ... 6 mm²)
touch protection on the front according to IEC 60529Finger-safe, for vertical contact
design of screw-type connection for auxiliary contactsM6
protection class IP on the front according to IEC 60529IP20
tightening torque for auxiliary contacts with screw-type terminals2 ... 2.5
