HRC fuse base plastic Sz. 00 3-pole 160A 690V flat terminal
Nomor Part: 3NH2030
Kategori
Low Voltage HRC fuse base

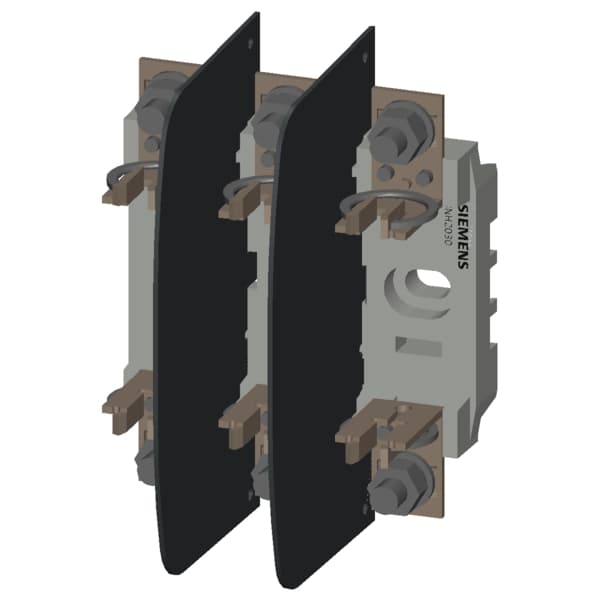

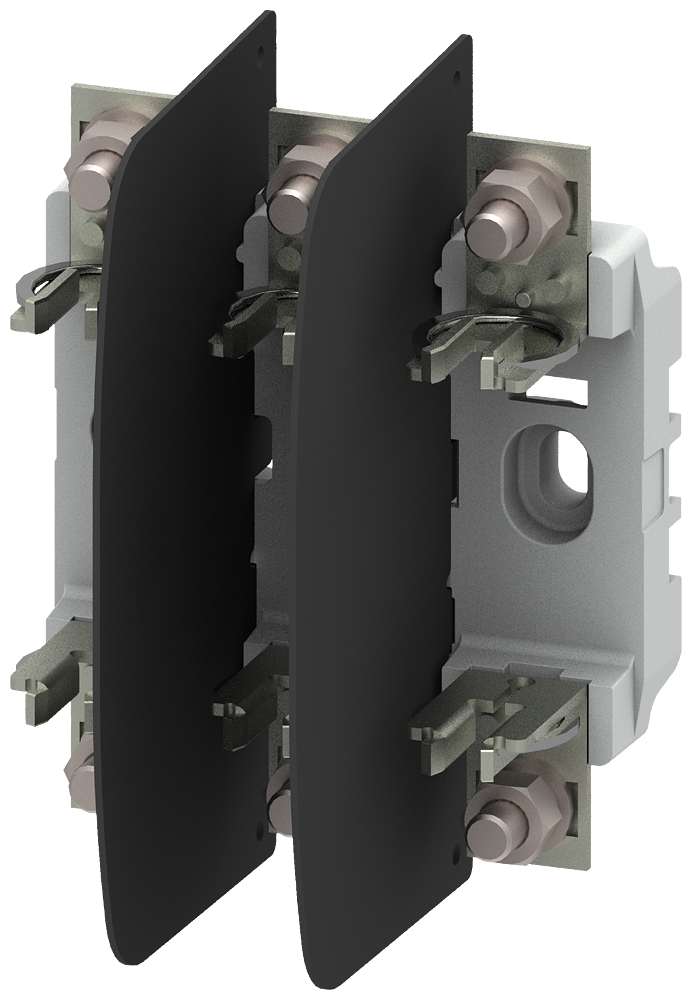

Siemens 3NH2030. HRC fuse base plastic Sz. 00 3-pole 160A 690V flat terminal.
Spesifikasi
Mechanical
Net Weight401 g
Dimensions
Width99 mm
Height140 mm
Depth86 mm
Other
number of poles3
fastening methodfixed mounting
product brand nameSENTRON
product designationLV HRC fuse base
utilization categoryWithout
fastening method bus-mountingNo
type of electrical connectionWith flat-type terminal
design of the thread of the nutM8
product component swivel-in mechanismNo
size of fuse system according to EN 60269-1NH00
design of the thread of the connection screwM8
tightening torque with screw-type terminals maximum10 N·m
tightening torque of the screw for securing the equipment maximum3 N·m
