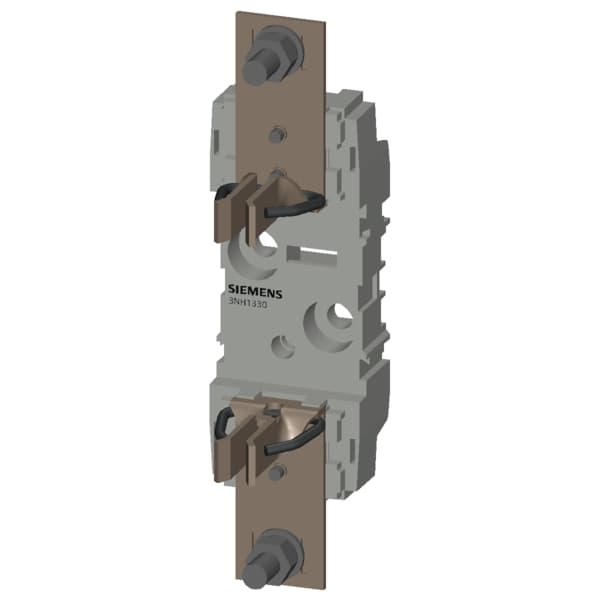

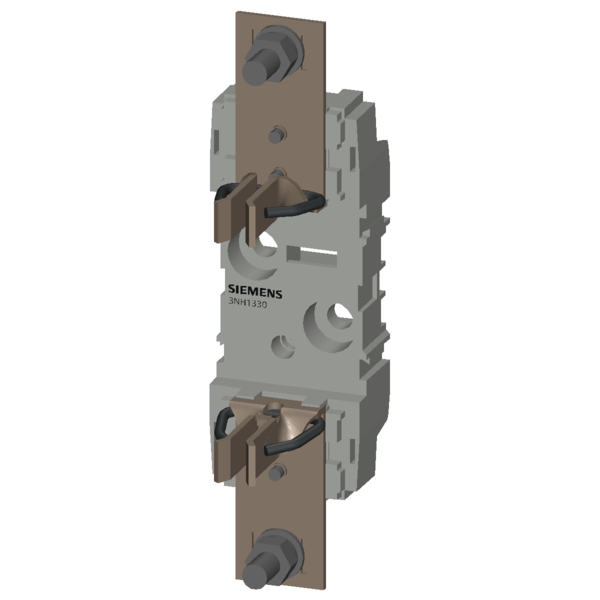

HRC fuse base plastic Sz. 2 1-pole 400A 690V flat terminal
Nomor Part: 3NH1330
Kategori
Low Voltage HRC fuse base
Siemens 3NH1330. HRC fuse base plastic Sz. 2 1-pole 400A 690V flat terminal.
Spesifikasi
Mechanical
Net Weight401 g

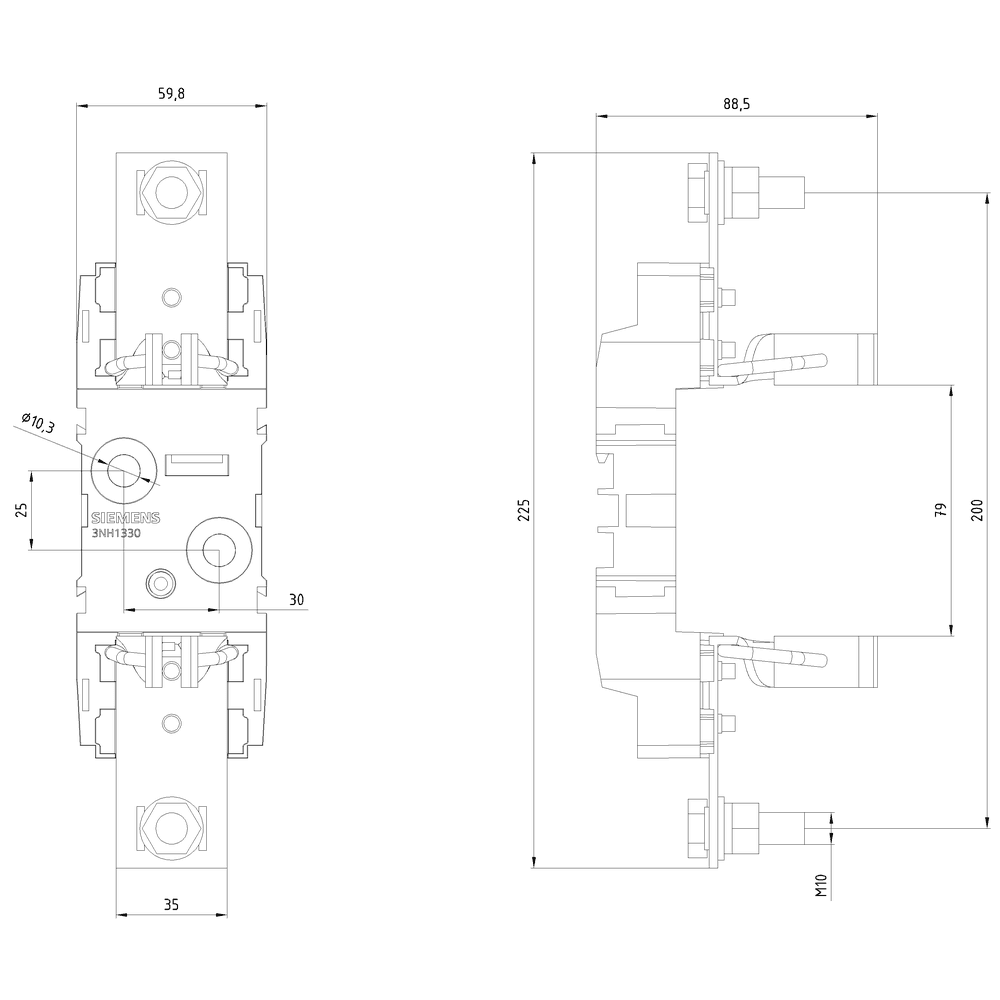

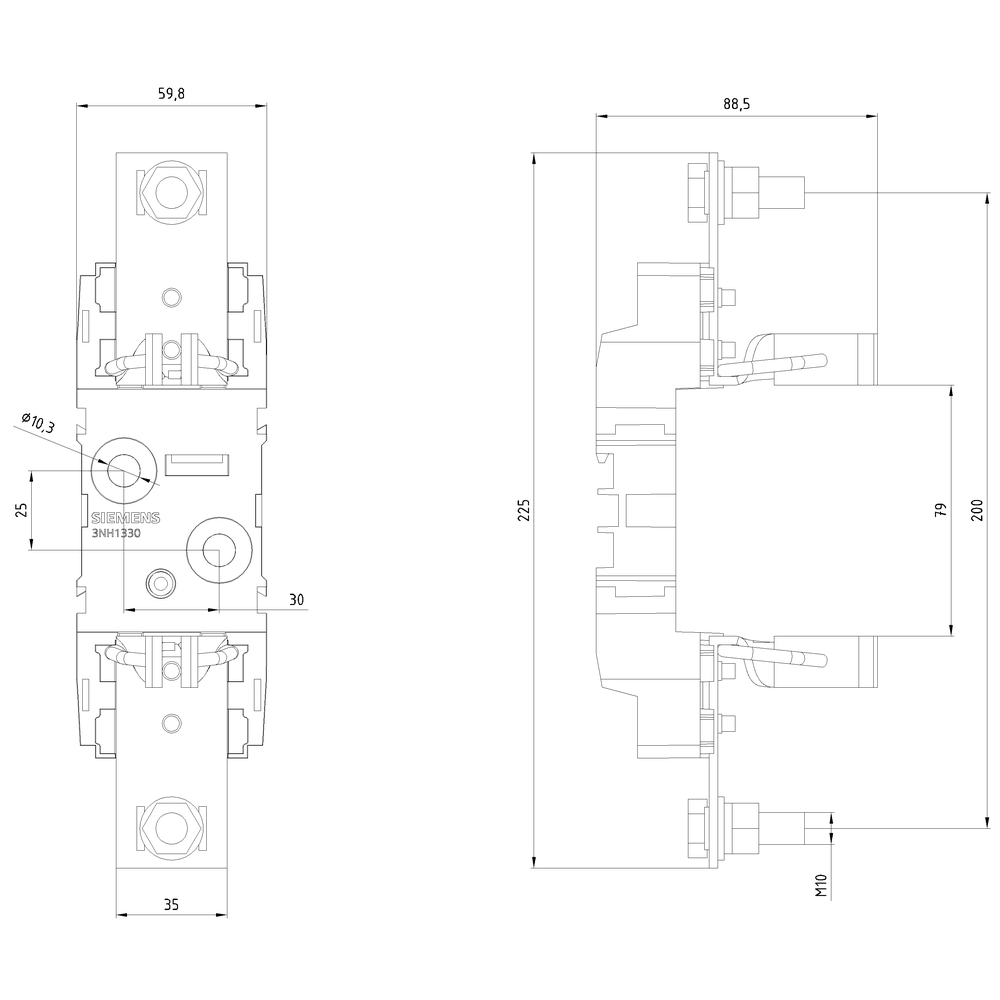

Dimensions
Width60 mm
Height225 mm
Depth89 mm
Other
number of poles1
fastening methodfixed mounting
product brand nameSENTRON
product designationLV HRC fuse base
utilization categoryWithout
fastening method bus-mountingNo
type of electrical connectionWith flat-type terminal
design of the thread of the nutM10
product component swivel-in mechanismNo
size of fuse system according to EN 60269-1NH2
design of the thread of the connection screwM10
tightening torque with screw-type terminals maximum32 N·m
tightening torque of the screw for securing the equipment maximum6 N·m
