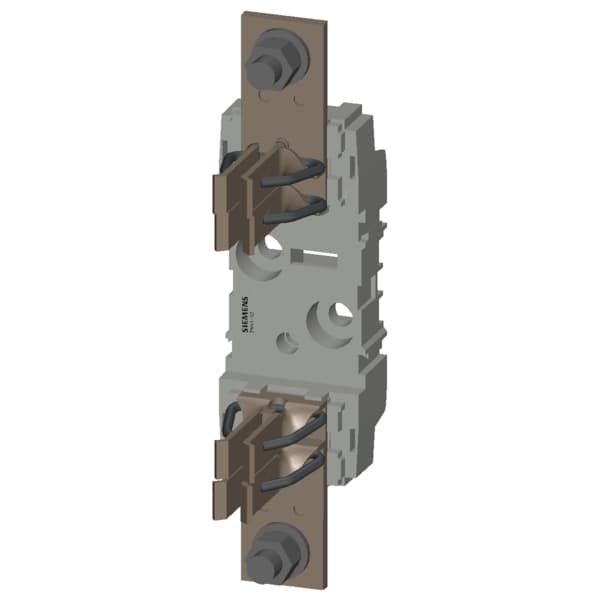

HRC fuse base plastic Sz. 3 1-pole 630A 690V flat terminal
Nomor Part: 3NH1430
Kategori
Low Voltage HRC fuse base
Siemens 3NH1430. HRC fuse base plastic Sz. 3 1-pole 630A 690V flat terminal.
Spesifikasi
Mechanical
Net Weight677 g

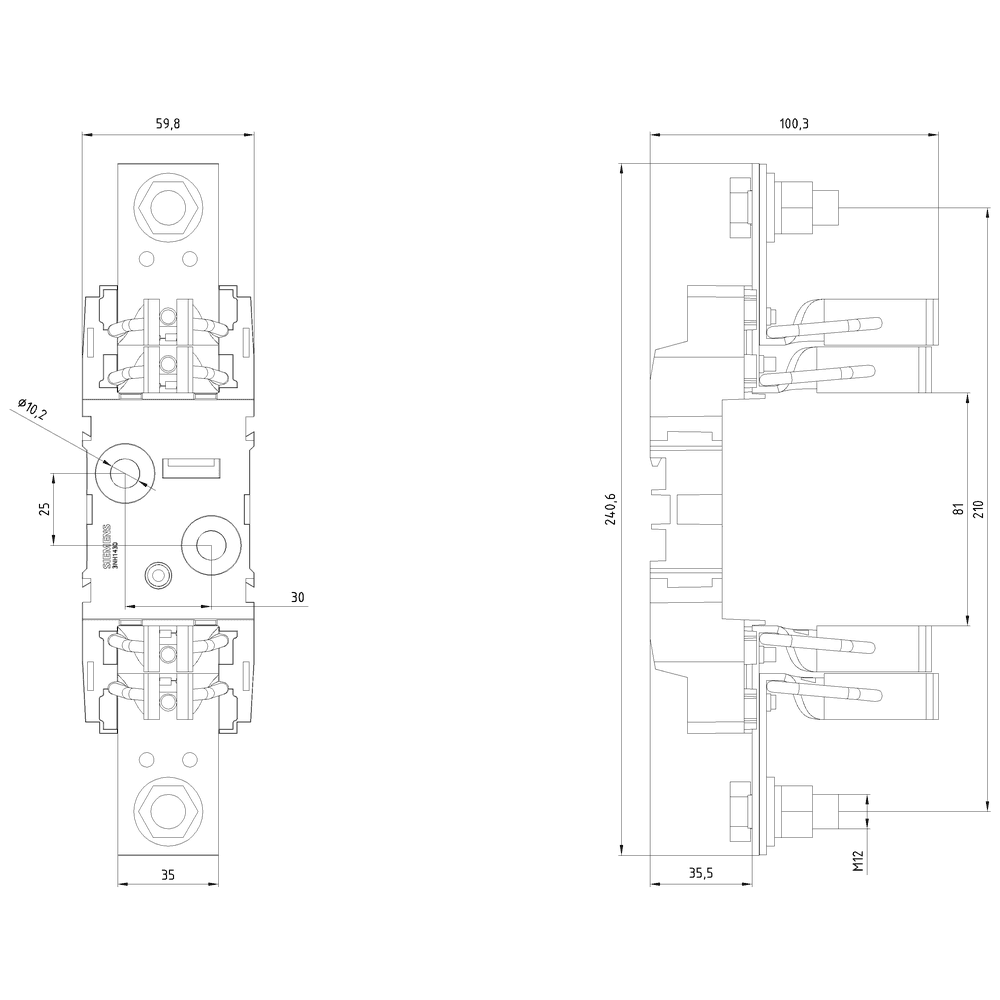

Dimensions
Width60 mm
Height240 mm
Depth101 mm
Other
number of poles1
fastening methodfixed mounting
product brand nameSENTRON
product designationLV HRC fuse base
utilization categoryWithout
fastening method bus-mountingNo
type of electrical connectionWith flat-type terminal
design of the thread of the nutM12
product component swivel-in mechanismNo
size of fuse system according to EN 60269-1NH3
design of the thread of the connection screwM12
tightening torque with screw-type terminals maximum32 N·m
tightening torque of the screw for securing the equipment maximum6 N·m
