Aktif

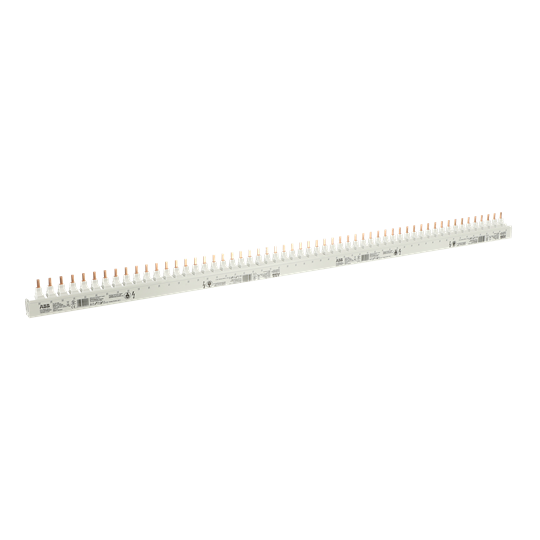

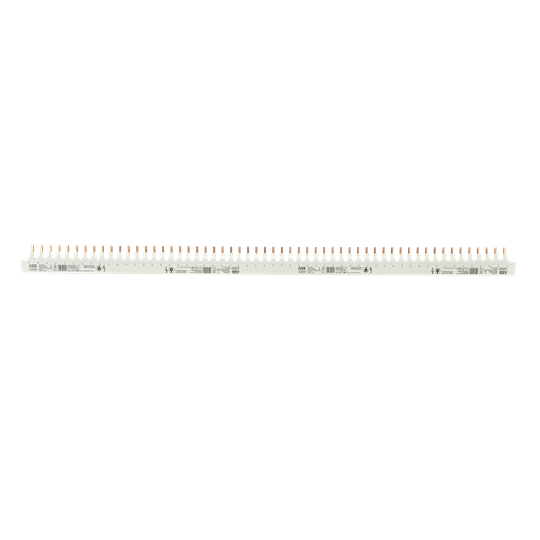

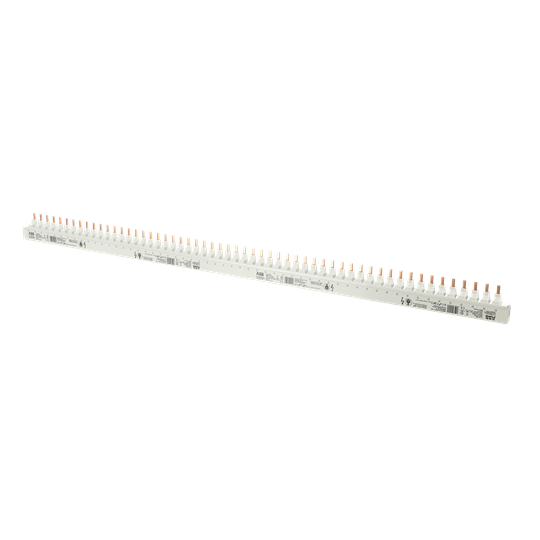

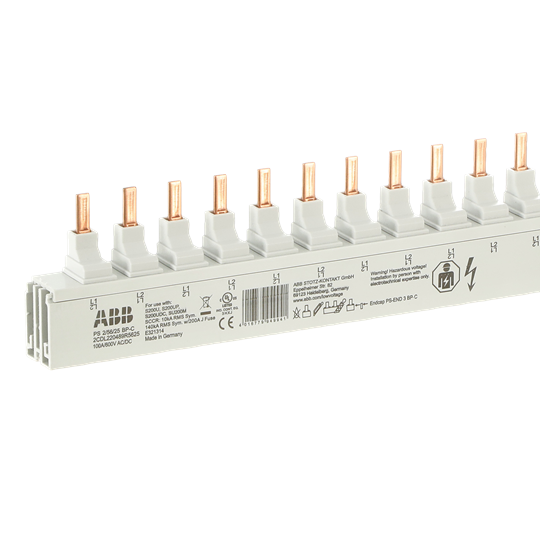

PS2/56/25BP-C - Phase busbar
Nomor Part: 2CDL220489R5625
Kategori
Phase busbar
ABB PS2/56/25BP-C. Phase busbar. featuring number of phases 2, number of poles 56.
Spesifikasi
Mechanical
Net Weight9.91 kg
Dimensions
Width103 mm
Depth85 mm
Other
ColourGrey
Length1070 mm
InsulatedYes
Module width17.6 EU570448
Cross section25 EU570126
Number of poles56
Number of phases2
Rated permanent current Iu80 EU570459
Type of electric connectionPin
Max. rated operation voltage Ue480 EU570079
Suitable for number of devices28
Width in number of modular spacings56
Suitable for devices with N-conductorNo
Rated short-time withstand current lcw10 EU570170
Suitable for devices with auxiliary switchNo
