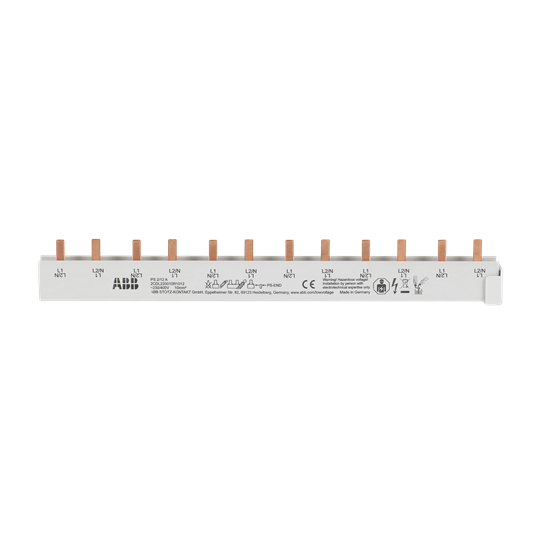

PS2/12A - Phase busbar
Nomor Part: 2CDL220010R1012
Kategori
Phase busbar
ABB PS2/12A. Phase busbar. featuring number of phases 2, number of poles 12.
Spesifikasi
Mechanical
Net Weight3.91 kg
Dimensions
Width230 mm
Depth80 mm
Other
ColourGrey
Length270 mm
InsulatedYes
Module width44729 EU570448
Cross section10 EU570126
Number of poles12
Number of phases2
Rated permanent current Iu63 EU570459
Type of electric connectionPin
Max. rated operation voltage Ue690 EU570079
Suitable for number of devices6
Width in number of modular spacings12
Suitable for devices with N-conductorNo
Rated short-time withstand current lcw25 EU570170
Suitable for devices with auxiliary switchNo
