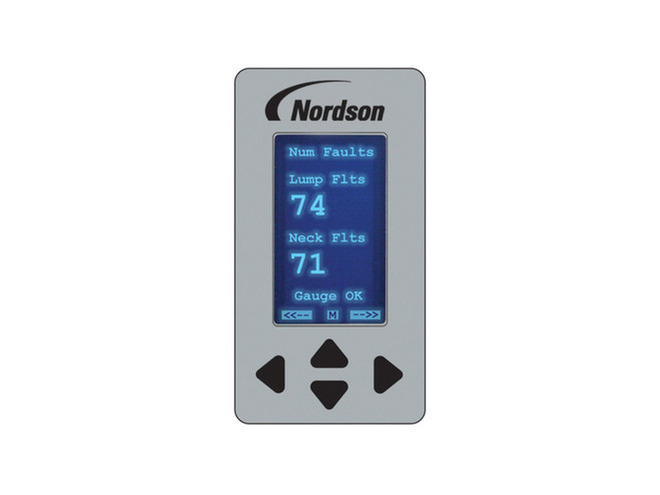

LN3000 - Lump and Neckdown Gauge
Brand
Category
Gauges and Instruments
Quickly, reliably detect and locate product flaws on wire, cable, and tube, such as lump and neckdowns, before they become costly production problems to ensure maximum quality control.
Specifications
Other
AccuracyGreater of either: ±0.011 mm (±0.0004 in.) or± 3% max flaw height / Greater of either: ±0.018 mm (±0.0007 in.) or± 3% max flaw height
Gate size18 mm (0.71 in.) / 48 mm (1.89 in.)
Scan rate250,000 scans/sec/axis / 250,000 scans/sec/axis
Number of axes3 / 3
Product diameter0.02-15 mm (0.0008-0.6 in.) / 0.04-40 mm (0.0016-1.57 in.)
Maximum line speed3000 m/min (9,842 ft/min.) / 3000 m/min (9,842 ft/min.)
Maximum flaw height2 mm (0.08 in.) / 10 mm (0.40 in.)
Minimum flaw length0.5 mm (0.02 in.) / 0.5 mm (0.02 in.)
Minimum detectable flaw height0.02 mm (0.0008 in.) / 0.05 mm (0.0020 in.)
