colorgrey
length60.5 mm
fastening methodTH35 DIN rail
product brand nameSENTRON
insulation materialPA

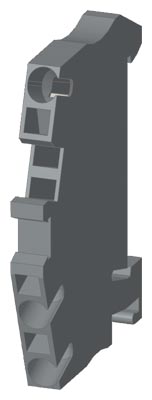

product designationTerminal blocks
type of connection 1spring-loaded terminal
type of connection 2spring-loaded terminal
design of the productisolating blade terminal
position of the terminaltop
terminal contact spacing5.2 mm
number of terminal levels1
type of lateral separationwithout
operating voltage rated value400 V
material of the insulating bodyOther
operational current rated value20 A
type of longitudinal separationothers
height with lowest-profile installation60.43 mm
combustibility class according to UL 94V0
number of terminal points per terminal level2
