Active
Terminal
Part Number: 8WH1000-6AH00
Brand
Category
(Knife) disconnect terminal block

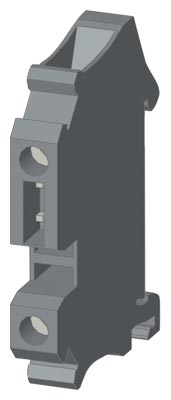

Siemens 8WH1000-6AH00. Terminal, screw terminal, isolating terminal, 6 mm², gray.
Specifications
Mechanical
Net Weight18 g
Dimensions
Depth47.5 mm
Other
colorgrey
length48 mm
fastening methodTH35 DIN rail
product brand nameSENTRON
insulation materialPA
product designationTerminal blocks
type of connection 1screw-type terminal
type of connection 2screw-type terminal
design of the productisolating terminal
position of the terminallateral
terminal contact spacing8 mm
number of terminal levels1
operating voltage rated value500 V
material of the insulating bodyPA
operational current rated value20 A
height with lowest-profile installation57.8 mm
combustibility class according to UL 94V0
number of terminal points per terminal level2
