MTTFd39 a
materialPC
color of lensclear
loudness level80 ... 105 dB
outer diameter72 mm
flash frequency1 Hz
light intensity1.8 ... 7 cd
fastening methodfloor mounting, pipe mounting, angle mounting
product brand nameSIRIUS
degree of pollution3

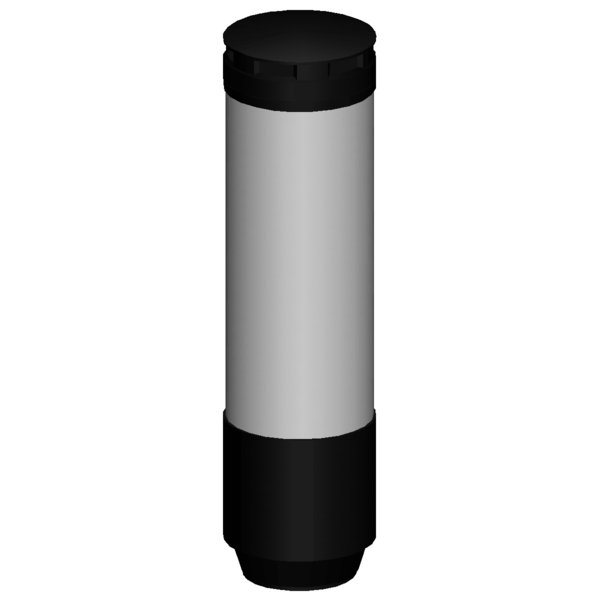

product designationElectronically configurable signaling column
protection class IPIP66, IP69k
service life of LED50 000 h
overvoltage categoryI
type of light sourceRGB-LED, multicolor
design of the productstandard signaling column
loudness level preset80 dB
tone frequency preset2.7 kHz
color of the enclosureblack
type of acoustic signalmulti-tone
consumed current minimum65 mA
number of light segments9
type of parameterizationSoftware
inrush current rated value800 mA
number of colors adjustable1 000 000
number of sounds adjustable10
design of the optical signalblinking, flashing, continuous, double-flashes, triple-flashes, rotating
type of electrical connectionM12 plug, 8-pole
number of signal stages preset3
product component light sourceYes
type of acoustic signal presetcontinuous tone
operational current rated value405 mA
degree of protection NEMA rating4/4X/12/13
insulation voltage (Ui) rated value50 V
tone frequency of alternating tone0.245 ... 6 kHz
operating voltage at DC rated value24 V
ambient temperature during operation-30 ... +60 °C
protocol is supported IO-Link protocolNo
service life of acoustic signal device5 000 h
design of external power supply requiredSELV/PELV functional extra low voltage
type of voltage of the operating voltageDC
impulse withstand voltage (Uimp) rated value330 V
product function adjustable optical signalYes
reference code according to IEC 81346-2:2019P
type of interface for parameter assignmentUSB-C
product function adjustable acoustic signalYes
product function adjustable luminous intensityYes
relative negative tolerance of the operating voltage10 %
relative positive tolerance of the operating voltage10 %
operating resource protection class according to IEC 61140III
