MTTFd34 a
materialPC
color of lensclear
outer diameter72 mm
flash frequency1 Hz
light intensity3 ... 12.5 cd
fastening methodfloor mounting, pipe mounting, angle mounting
product brand nameSIRIUS
degree of pollution3

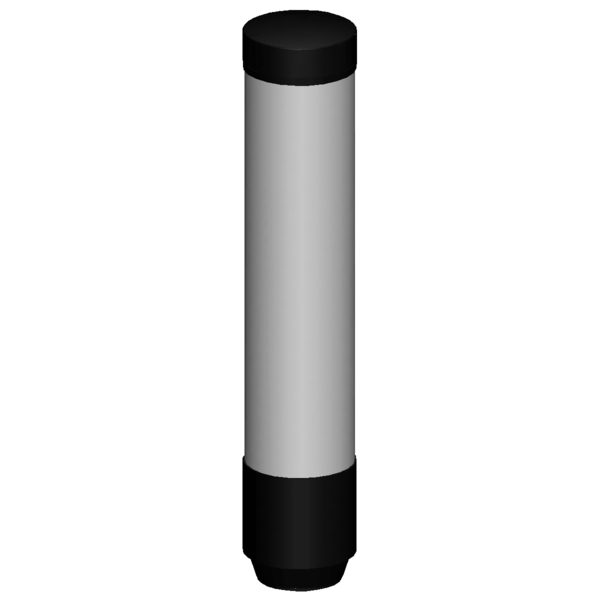

product designationElectronically configurable signaling column
protection class IPIP66, IP69k
service life of LED50 000 h
IO-Link transfer rateCom 3
overvoltage categoryI
type of light sourceRGB-LED, multicolor
design of the productsignaling column for IO-Link
color of the enclosureblack
number of IO-Link ports1
consumed current minimum95 mA
number of light segments15
type of parameterizationIODD
inrush current rated value800 mA
number of colors adjustable1 000 000
design of the optical signalblinking, flashing, continuous, double-flashes, triple-flashes, rotating

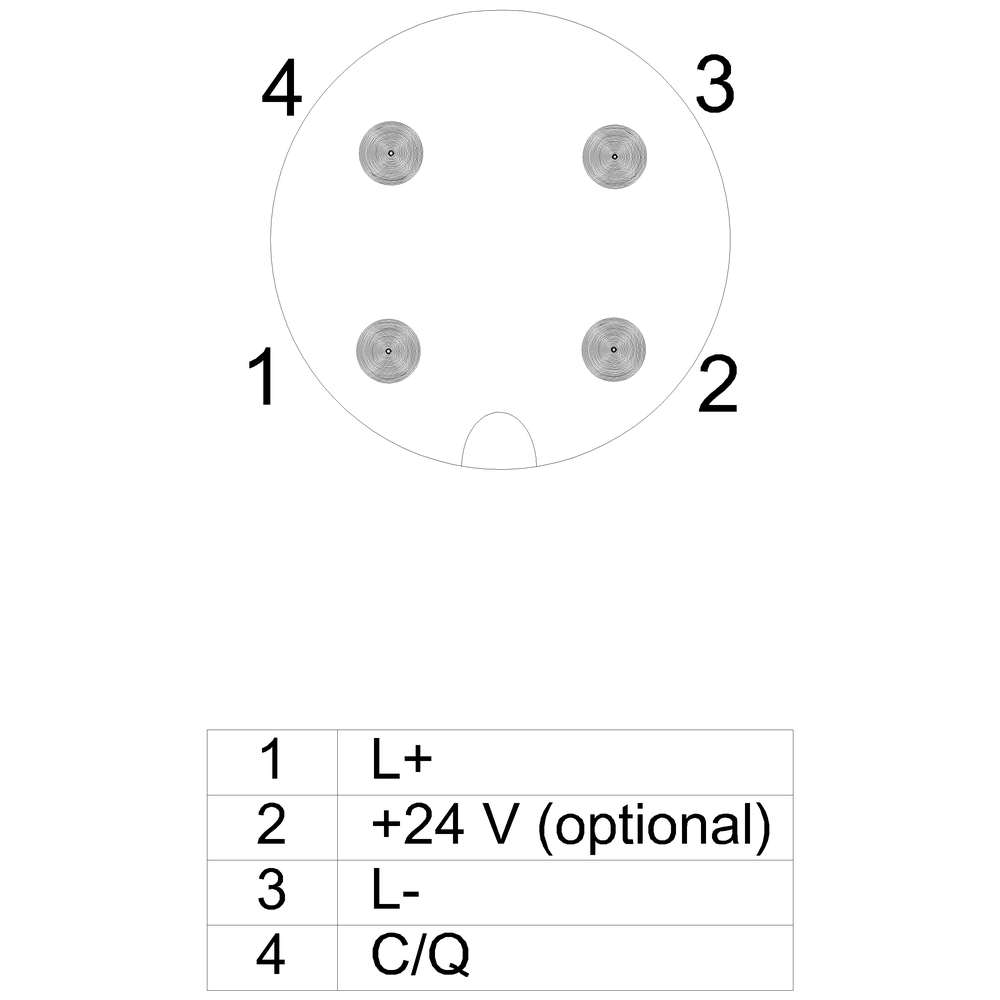

type of electrical connectionM12 connector, 4-pole
number of signal stages preset5
product component light sourceYes
operational current rated value555 mA
degree of protection NEMA rating4/4X/12/13
insulation voltage (Ui) rated value50 V
type of IO-Link device connectablesignaling column
operating mode at input/ output link24-bit output
operating voltage at DC rated value24 V
ambient temperature during operation-30 ... +60 °C
protocol is supported IO-Link protocolYes
design of external power supply requiredSELV/PELV functional extra low voltage
type of voltage of the operating voltageDC
impulse withstand voltage (Uimp) rated value330 V
product function adjustable optical signalYes
reference code according to IEC 81346-2:2019P
type of interface for parameter assignmentIO-Link
product function adjustable acoustic signalNo
product function adjustable luminous intensityYes
relative negative tolerance of the operating voltage20 %
relative positive tolerance of the operating voltage20 %
operating resource protection class according to IEC 61140III
point-to-point cycle time between master and IO-Link device minimum6 ms
