Active
AS-Interface adapter element
Part Number: 8WD4428-0BD
Brand
Category
Connection module for signal tower

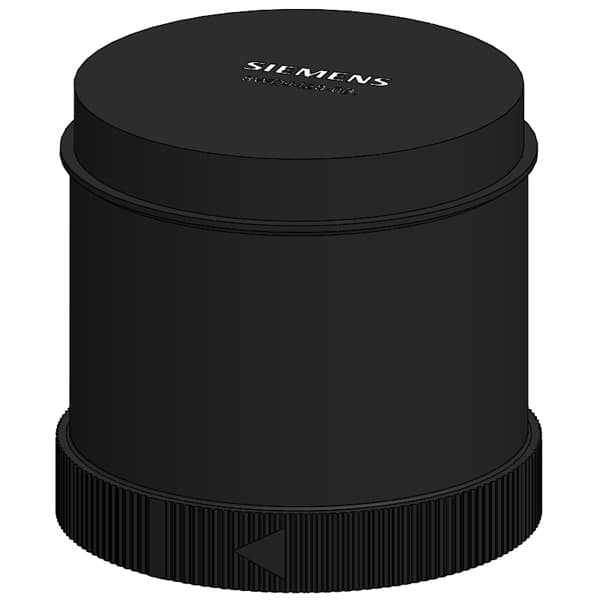

Siemens 8WD4428-0BD. AS-Interface adapter element, black, with/without external auxiliary voltage, can be selected, A/B technology, for 3 signaling elements, 24 V DC, Diameter 70 mm.
Specifications

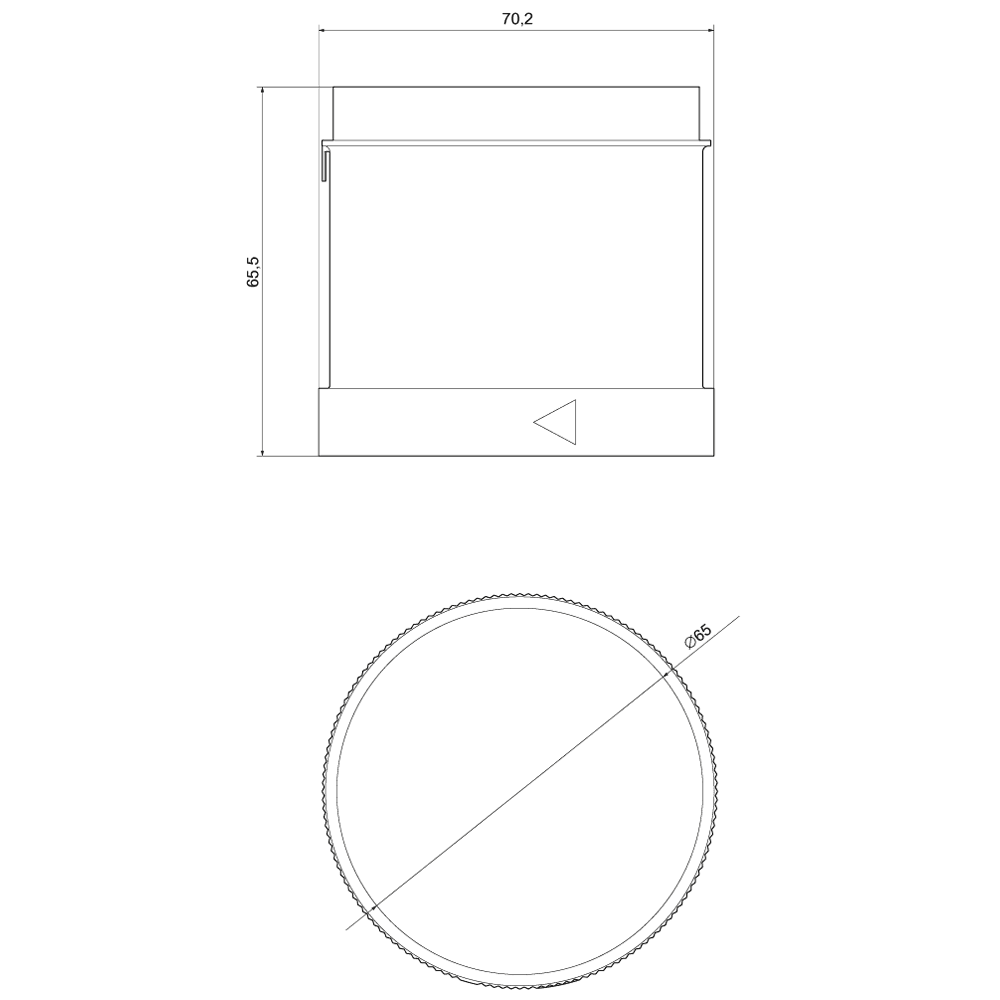

Dimensions
Width70 mm
Height65.5 mm
Other
colorblack
materialPC
fastening methodBayonet
product brand nameSIRIUS
product designationAS-Interface module
protection class IPIP65
consumed current maximum210 mA
ambient temperature during operation-20 ... +50 °C
reference code according to EN 61346-2B
type of voltage of the operating voltageDC
outer diameter of the signal column element70 mm
design of the interface AS-Interface protocolYes
