Active
Connection element
Part Number: 8WD4408-0AB
Brand
Category
Connection module for signal tower

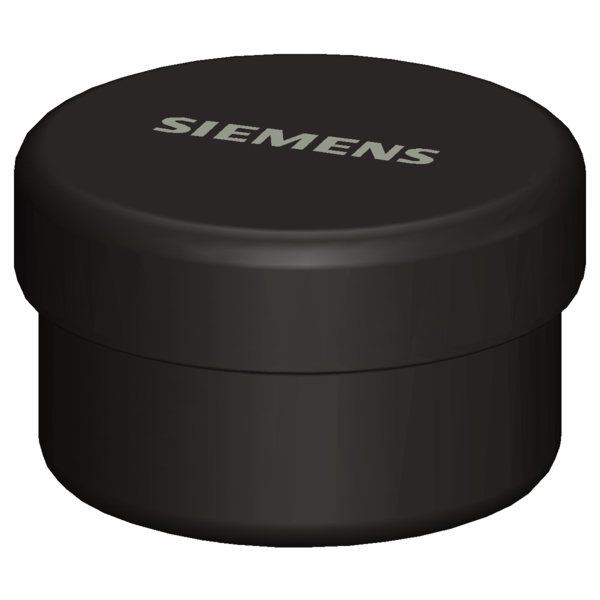

Siemens 8WD4408-0AB. Connection element, with end cover, black, for floor/angle mounting, with screw terminal,.
Specifications
Dimensions
Width70 mm
Height42.5 mm
Other
colorblack
materialPA
fastening methodFloor/bracket mounting
product brand nameSIRIUS
product designationConnection element
protection class IPIP65
design of the productfor floor and bracket mounting,
type of electrical connectionscrew terminal
ambient temperature during operation-20 ... +50 °C
reference code according to EN 61346-2X
tightening torque with screw-type terminals0.4 N·m
outer diameter of the signal column element70 mm
