mounting typeClip for 35 mm rail
fastening methodterminal mounting
mounting positionVertical
product brand nameSIVACON

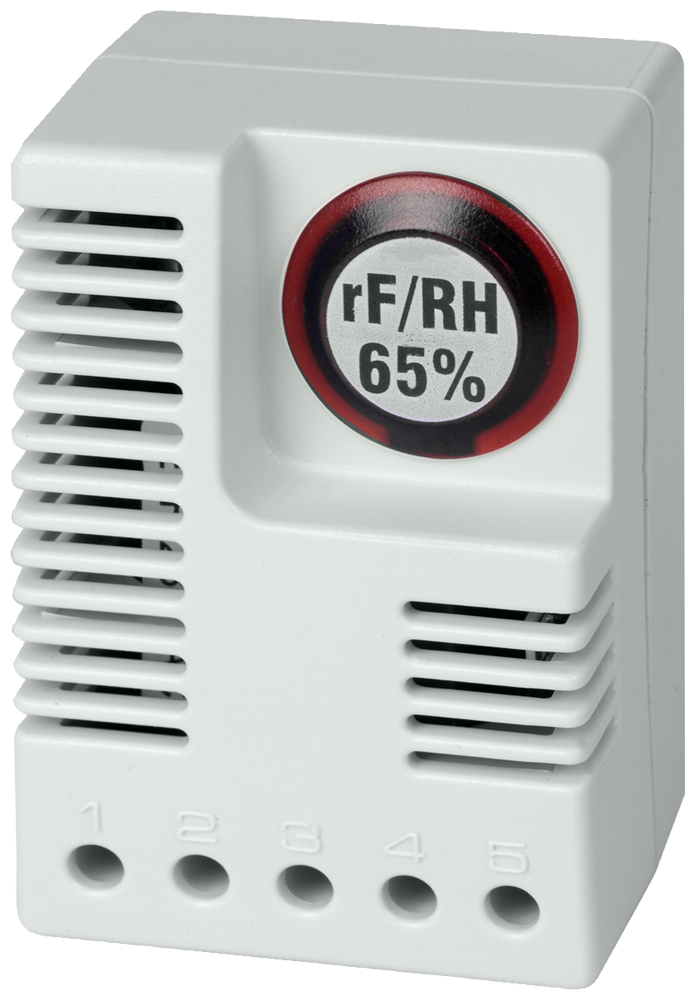

product designationElectronic hygrostat
protection class IPIP 20
type of electrical connection5-pole terminal
design of the switching functionCO contact
product component digital displayYes
relative humidity reference value90 %
reference code according to IEC 81346-2K
type of voltage of the operating voltageAC
mechanical service life (operating cycles) typical50 000
tightening torque with screw-type terminals maximum0.5 N·m
connectable conductor cross-section for rigid conductor maximum2.5 mm²
switching differential relative humidity at ± 3% tolerance at 25 °C5 %
connectable conductor cross-section finely stranded with core end processing maximum1.5 mm²
