Active
Busbar L1-3
Part Number: 8LK4002-7AA03
Brand
Category
Busbar system for distribution boards

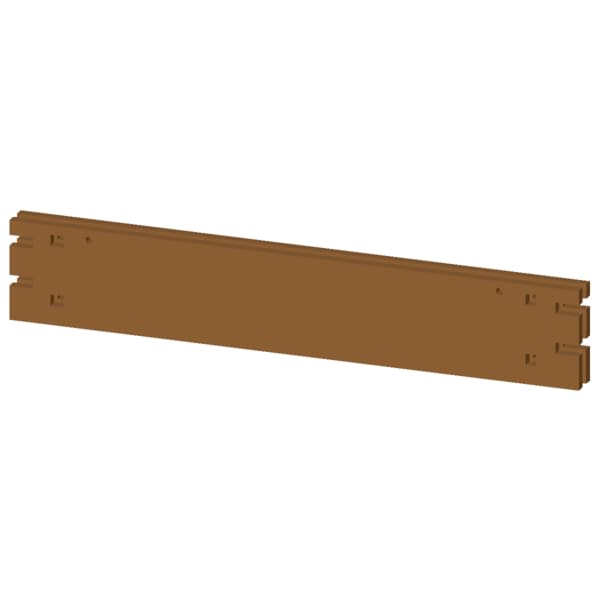

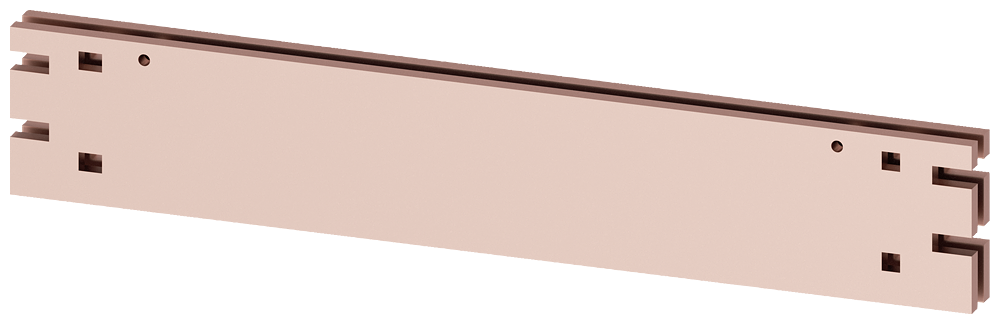

Siemens 8LK4002-7AA03. Busbar L1-3, 2 x 100 x 10 mm, W: 600 mm.
Specifications
Mechanical
Net Weight10.069 kg
Dimensions
Width600 mm
Height100 mm
Depth30 mm
Other
mounting height100 mm
number of poles1
installation width600 mm
product brand nameALPHA 3200 Eco
width of the busbar100 mm
design of the productPotential: L1-3
installation locationmain busbar
type of busbar profilebare
position of main busbarRear
thickness of the busbar10 mm
short-circuit current rating75 kA
busbar center-to-center spacing185 mm
operational current rated value3 000 A
