Active
Busbar L1-3
Part Number: 8LK4002-6AA73
Brand
Category
Busbar system for distribution boards

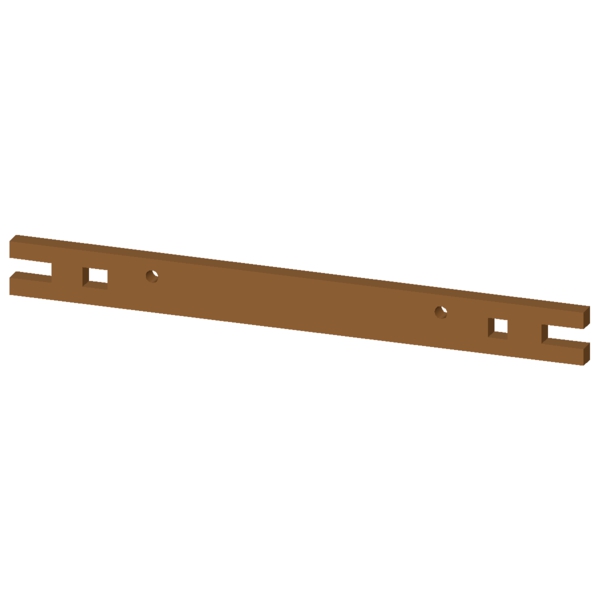

Siemens 8LK4002-6AA73. Busbar L1-3, 30 x 10 mm, W: 350 mm.
Specifications
Mechanical
Net Weight799 g
Dimensions
Width350 mm
Height30 mm
Depth10 mm
Other
mounting height30 mm
number of poles1
installation width350 mm
product brand nameALPHA 3200 Eco
width of the busbar30 mm
design of the productPotential: L1-3
installation locationmain busbar
type of busbar profilebare
position of main busbarRear
thickness of the busbar10 mm
short-circuit current rating35 kA
busbar center-to-center spacing185 mm
operational current rated value940 A
