Active

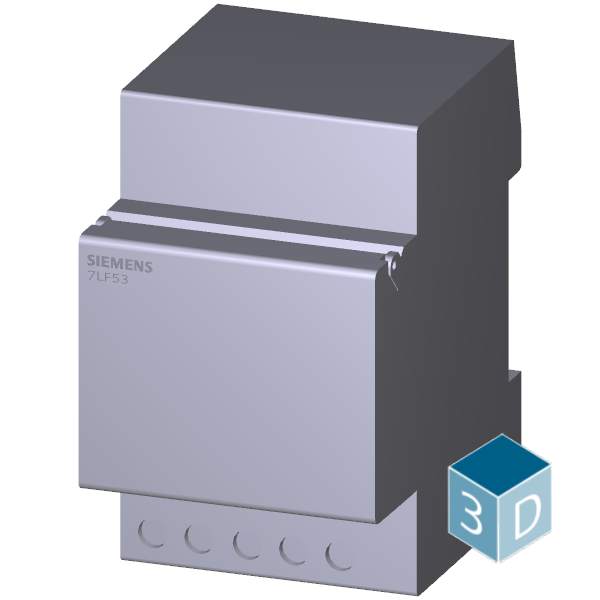

Quartz time switch Week 1 change-over contact 230 V/50-60 Hz 3 MW
Part Number: 7LF5301-7
Brand
Category
Analogous time switch for distribution board
Siemens 7LF5301-7. Quartz time switch Week 1 change-over contact 230 V/50-60 Hz 3 MW.
Specifications
Mechanical
Net Weight161 g
Dimensions
Width53 mm
Height83 mm
Depth64 mm
Other
accuracy per day2.5 s
fastening methodDIN rail
number of channels1
product brand nameSENTRON
product designationMechanical time switch
protection class IPIP20
design of the productWeek
supply voltage initial value230 V
number of modular width units3
supply voltage full-scale value230 V
design of the switching functionCO contact
type of voltage of the supply voltageAC
principle of operation line-synchronousNo
principle of operation quartz-controlledYes
product feature floating switching contactYes
shortest switching time interval of channel 130 min
switching capacity current at AC at 250 V rated value16 A
