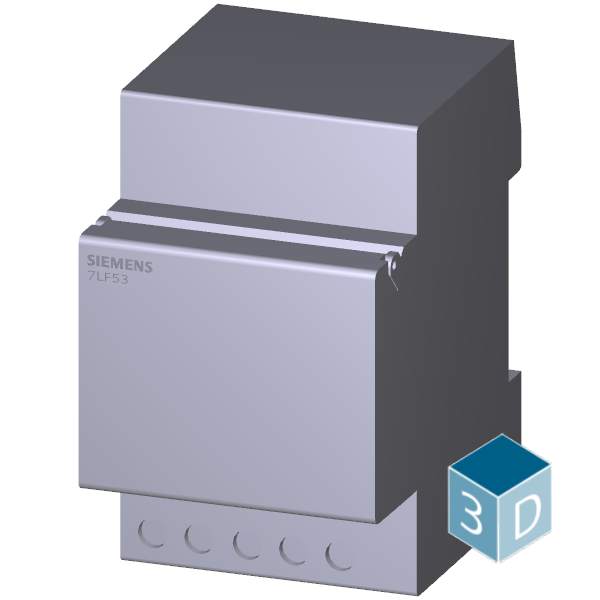

Synchronous time switch Week 1 change-over contact 230 V/50 Hz 3 MW
Part Number: 7LF5300-6
Brand
Category
Analogous time switch for distribution board
Siemens 7LF5300-6. Synchronous time switch Week 1 change-over contact 230 V/50 Hz 3 MW.
Specifications
Mechanical
Net Weight150 g
Dimensions
Width53 mm
Height83 mm
Depth64 mm
Other
fastening methodDIN rail
number of channels1
product brand nameSENTRON
product designationMechanical time switch
protection class IPIP20
design of the productWeek
supply voltage initial value230 V
number of modular width units3
supply voltage full-scale value230 V
design of the switching functionCO contact
type of voltage of the supply voltageAC
principle of operation line-synchronousYes
principle of operation quartz-controlledNo
product feature floating switching contactYes
shortest switching time interval of channel 1240 min
switching capacity current at AC at 250 V rated value16 A
