Active

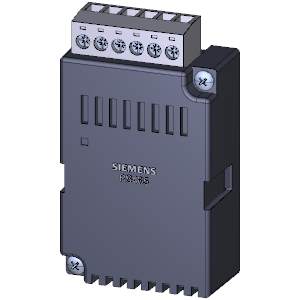

RS 485 expansion module

Name: RS 485 expansion module
Brand: Siemens
SKU: 7KM9300-0AM00-0AA0
Availability: InStock

Part Number: 7KM9300-0AM00-0AA0

Brand

Visit Website

Specifications

Mechanical

Net Weight74 g

Dimensions

Width18 mm

Height90 mm

Depth73 mm

Other

MTBF222.3 a

fastening methodpluggable

galvanic isolationMaximum insulation voltage: 500V AC

product brand nameSENTRON

degree of pollution2 according to IEC 61131

product designationRS 485 expansion module

protection class IPIP20

suitability for use7KM PAC 3220 / PAC 4200 / PAC 4220 / 3VA COM100 / 800

type of voltage supplyvia PAC 3200 / PAC4200 / COM100 / 800

type of electrical connectionscrew terminal

combustibility class according to UL 94V 0

suitability for use reactive power meterNo

reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750P
