Active
Stairwell light timer
Part Number: 7LF6311
Brand
Category
Staircase lighting timer

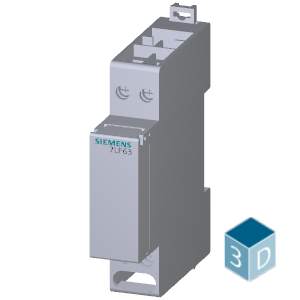

Siemens 7LF6311. Stairwell light timer,230V 1 NO contact 16A 250V 50Hz, electronic,seperate Multi voltage input 8...230V AC DC, 7 selectable functions, setting range 0,5...12 min., for 3- or 4-wire circuit, resettable,max. glow lamp current 50mA,1WE.
Specifications
Mechanical
Net Weight90 g
Dimensions
Width18 mm
Height90 mm
Depth64 mm
Other
fastening methodDIN rail
installation depth70 mm
product brand nameSENTRON
product designationStairwell lighting timer
switch-off prewarningflashing
number of CO contacts0
number of NC contacts0
number of NO contacts1
number of modular width units1
type of voltage of the operating voltageAC
staircase lighting timing switch reset functionresettable + continuous light
principle of operation of the staircase lighting switchelectronic
switching capacity active power with incandescent lamp load2 000 W
power loss [W] for rated value of the current at AC in hot operating state per pole1 W
