IRTYes
MTBF196.31 a
fastening methodpluggable
galvanic isolationMaximum insulation voltage: 500V AC
product brand nameSENTRON
degree of pollution2 according to IEC 61131

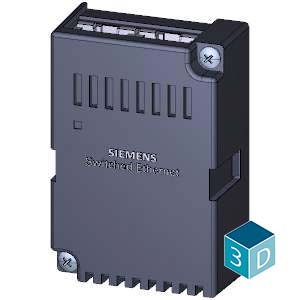

product designationSwitched Ethernet PROFINET expansion module
protection class IPIP20
suitability for use7KM PAC 3220 / PAC 4200 / PAC 4220 / 3VA COM100 / 800
open IE communicationYes
type of voltage supplyvia PAC 3200 / PAC3220 / PAC4200 / COM100 / 800
type of electrical connection2 x RJ45 socket
interface design 1 integrated switchYes
combustibility class according to UL 94V 0
suitability for use reactive power meterNo
type of transfer rate for plug type RJ45PROFINET with 100 Mbps
transmission mode for Industrial EthernetPROFINET with 100 Mbps
GSD version/revision with PROFINET requiredGSDML V2.3
number of interfaces according to PROFINET2
transfer rate for plug type RJ45 100 Mbit/sYes
design of the interface according to PROFINET2 ports (switch)
service as PROFINET IO device supports PROFIenergyYes
type of update time at the PROFINET IO device with IRT500 µs, 1 ms, 2 ms, 4 ms for IRT
protocol at the 1st interface media redundancy protocolYes
software version with STEP 7 in the TIA Portal required≥ STEP 7 V16
product function at the Ethernet interface AutocrossoverYes
product function at the Ethernet interface AutonegotiationYes
product function of the PROFINET IO controller is supported PROFINET system redundancyYes
reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750P
