two-hand operation console for command devices
Part Number: 3SU1853-3NB00-1AD1
Brand
Category
Two-hand control device

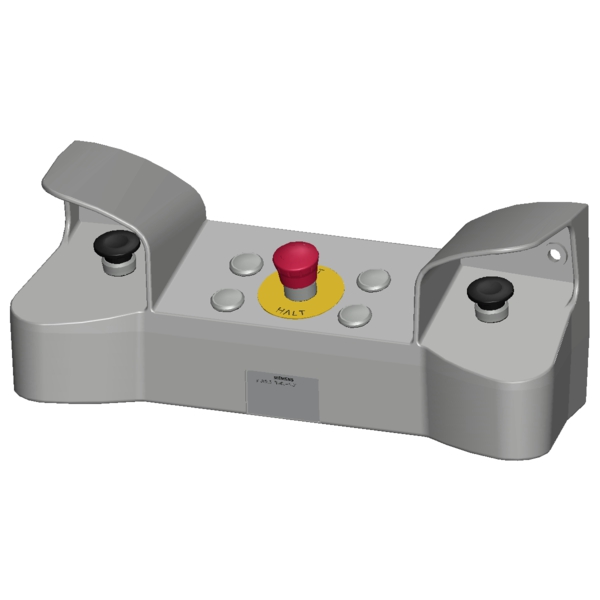

Siemens 3SU1853-3NB00-1AD1. two-hand operation console for command devices, 22 mm, round, enclosure material metal, enclosure top part gray, 3 command points metal, 4 additional holes for 22 mm command devices 2 mushroom pushbuttons black 40 mm, 2x 1 NO+1 NC, screw terminal, 1x EMERGENCY STOP red, 40 mm, 2 NC, screw terminal, front mounting, 4x sealing plug metal, with cable cut-outs for metric cable glands.
Specifications
Mechanical
Net Weight4.927 kg
Dimensions
Width492.4 mm
Height185.6 mm
Depth159.5 mm
Other
product brand nameSIRIUS ACT
product designationTwo-hand operation console
protection class IPIP66
design of the housingTwo-hand operating console with standard components
color of backing plateYellow
material of the holderMetal
color of the front ringsilver
marking of backing plateNOT-HALT
number of backing plates1
number of command points3
product type designation3SU1
type of unlocking deviceA = none / B = rotate to unlock / C = none
material of the enclosuremetal
number of contact modules6
material of the front ringmetal
Substance Prohibitance (Date)10/01/2014
product component front ringYes
color of the actuating elementA = black / B = red / C = black
shape of the actuating elementround
color of the enclosure top partgrey
design of the actuating elementA = mushroom pushbutton / B = EMERGENCY STOP mushroom pushbutton / C = mushroom pushbutton
product component stand/pedestalNo
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
fastening method of the enclosureHorizontal
material of the actuating elementmetal
device type according to ISO 13849-13
reference code according to IEC 81346-2S
test wear-related service life necessaryYes
safety device type according to IEC 61508-2Type A
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
type of electrical connection on enclosureCable routing at the rear 2 x M25
design of the contact of auxiliary contactsSilver alloy
fastening method of modules and accessoriesFront plate mounting
number of NC contacts for auxiliary contacts4
number of NO contacts for auxiliary contacts2
continuous current of the DIAZED fuse link gG10 A
product function suitable for safety functionYes
vibration resistance according to IEC 60068-2-610 ... 500 Hz: 5g
continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A
principle of operation of the actuating elementA = momentary contact / B = latching / C = momentary contact
continuous current of the quick DIAZED fuse link10 A
B10 value with high demand rate according to SN 31920100 000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)
T1 value for proof test interval or service life according to IEC 6150820 a
failure rate [FIT] with low demand rate per NC contact according to SN 31920100 FIT
