product brand nameSIRIUS ACT

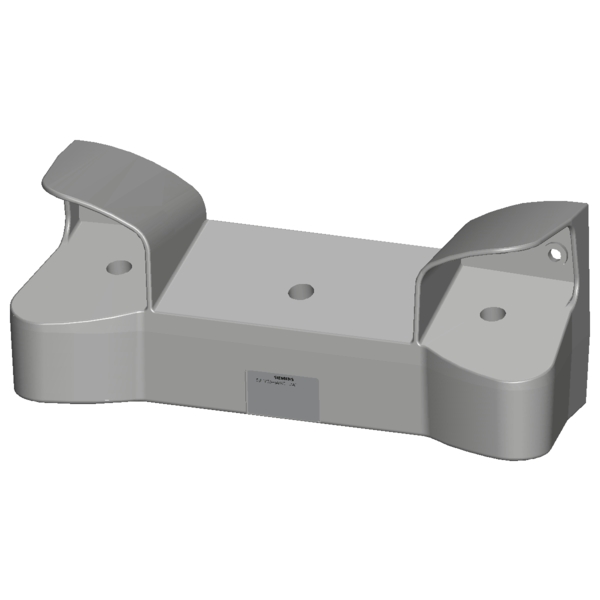

product designationTwo-hand operation console
protection class IPIP66
design of the housingTwo-hand operating console without standard equipment
number of backing plates0
number of command points3
product type designation3SU1
material of the enclosuremetal
number of contact modules0
Substance Prohibitance (Date)10/01/2014
color of the enclosure top partgrey
design of the actuating elementUnequipped
product component stand/pedestalNo
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
fastening method of the enclosureHorizontal
reference code according to IEC 81346-2U
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
type of electrical connection on enclosureCable routing at the rear 2 x M25
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
vibration resistance according to IEC 60068-2-610 ... 500 Hz: 5g
principle of operation of the actuating elementwithout
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)
