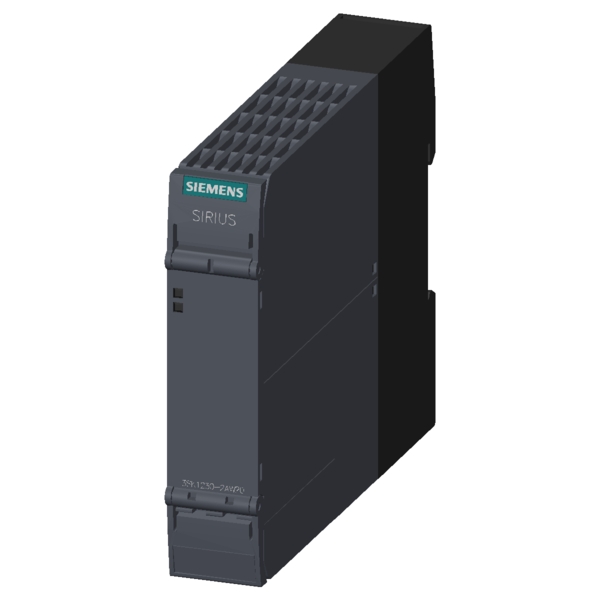

Name: SIRIUS safety relay Power supply for 3SK1 Advanced series Us = 110-240 V AC/DC Spring-type terminal (push-in)
Brand: Siemens
SKU: 3SK1230-2AW20
Availability: InStock

Specifications

Mechanical

Net Weight0.191 kg

Dimensions

Width22.5 mm

Height100 mm

Depth121.6 mm

Other

type of voltageAC/DC

fastening methodscrew and snap-on mounting

product categorySafety relays

shock resistance10g / 11 ms

mounting positionany

product brand nameSIRIUS

degree of pollution3

product designationPower supply

overvoltage category3

power loss [W] maximum2.5 W

consumed current maximum0.25 A

EMC emitted interferenceIEC 60947-5-1, Class A

product type designation3SK1

Substance Prohibitance (Date)11/05/2012

type of electrical connectionspring-loaded terminal (push-in)

insulation voltage rated value300 V

design of short-circuit protectionautomatically start-up

air pressure according to SN 31205900 ... 1 060 hPa

relative humidity during operation10 ... 95 %

protection class IP of the enclosureIP20

surge voltage resistance rated value4 000 V

certificate of suitability UL approvalYes

reference code according to IEC 81346-2T

control supply voltage at DC rated value110 ... 240 V

property of the output short-circuit proofYes

suitability for use safety-related functionYes

vibration resistance according to IEC 60068-2-65 ... 500 Hz: 0.75 mm

installation altitude at height above sea level maximum4 000 m
