Active

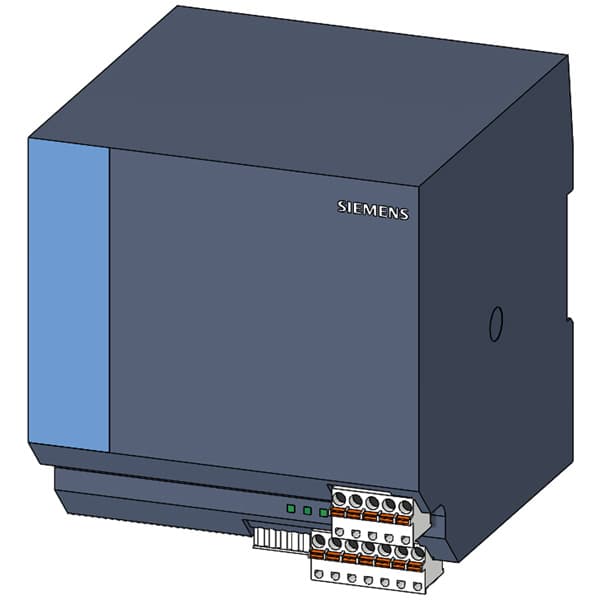

AS-i Power 8 A 120 V / 230-500 V AC AS-Interface power supply unit
Part Number: 3RX9503-0BA00
Brand
Category
Fieldbus, decentr. periphery - power supply module
Siemens 3RX9503-0BA00. AS-i Power 8 A 120 V / 230-500 V AC AS-Interface power supply unit, IP20 IN: 120 V / 230-500 V AC OUT: AS-i, 8 A (30 V DC) with integrated ground fault detection, with integrated overload detection with AS-i data decoupling.
Specifications

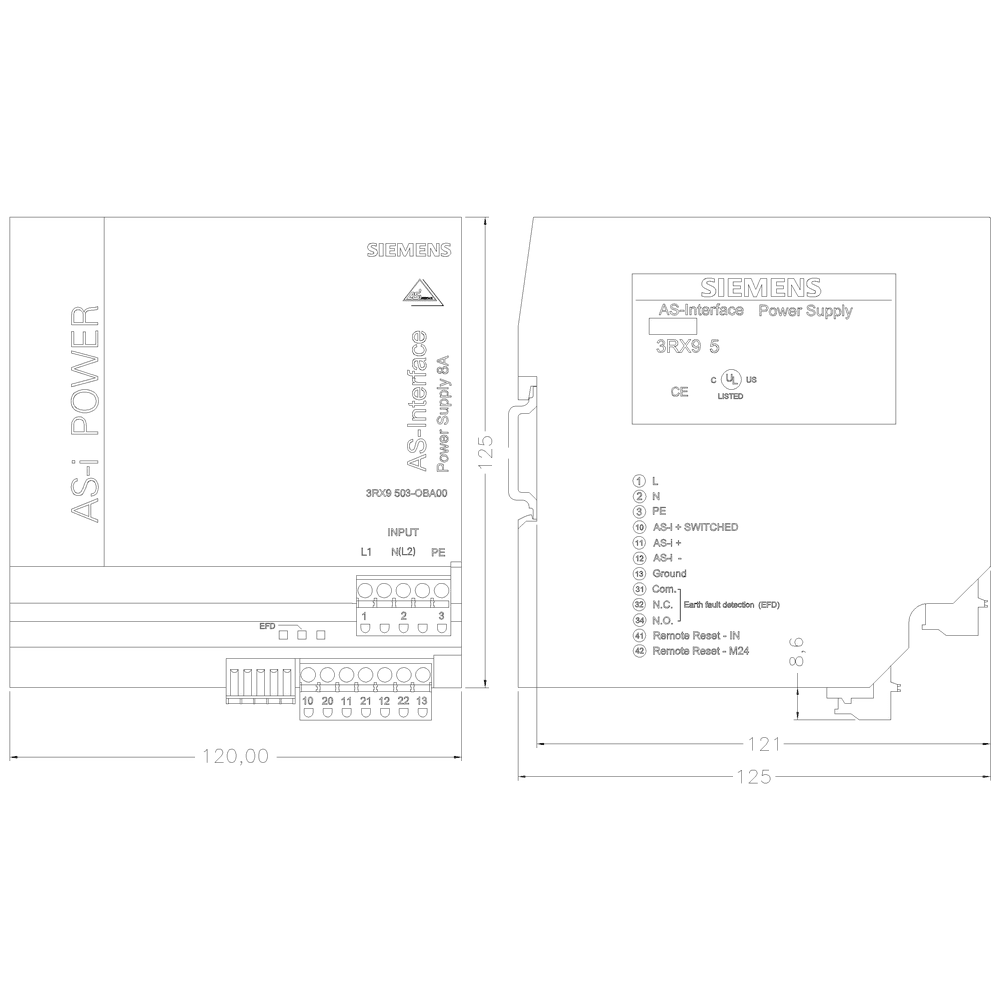

Dimensions
Width120 mm
Height125 mm
Depth125 mm
Other
fastening methodfixing on standard mounting rail DIN EN 59 022-35 x 7.5 mm snap-on
protection class IPIP20
power loss [W] maximum32
