SIMATIC DP
Part Number: 6ES7136-6PA00-0BC0
Brand
Category
Fieldbus, decentr. periphery - power supply module

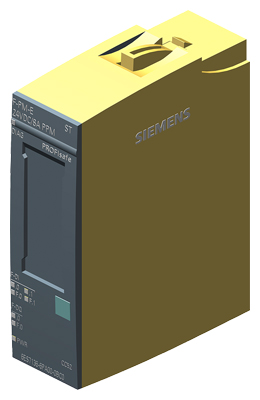

Siemens 6ES7136-6PA00-0BC0. SIMATIC DP, POWER M. F-PM-E PPM PROFIsafe, for ET 200SP; 24 V DC safe shutdown of DQ and F-DQ up to PL D/SIL2 or PL E/SIL3 2 for safe dig. inputs 1 for safe dig. output PPM.
Specifications
Dimensions
Width20 mm
Height73 mm
Depth58 mm
Other
Weight, approx.70 g
— at "0" to "1", max.20 ms
— at "0" to "1", min.0.4 ms
— at "1" to "0", max.20 ms
— at "1" to "0", min.0.4 ms
Power loss, typ.5 W
Rated value (DC)24 V
— parameterizableNo
usable BaseUnitsBU type C0
Number of outputs2
Automatic encodingYes
Overload protectionYes
Diagnostics functionYes; See Chapter "Alarms/diagnostic messages" in the manual
Isolation tested with707 V DC (type test)
Open-circuit detectionYes
Sourcing/sinking inputYes; P-reading
Current consumption, max.21 mA; From the backplane bus
Short-circuit protectionYes
Number of digital inputs2
Product type designationF-PM-E 24 V DC/8 A PPM ST
Number of digital outputs1
Reverse polarity protectionYes
Substitute values connectableNo
Suitable for safety functionsYes
Current consumption (rated value)75 mA; without load
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
— global warming potential, (total) [CO2 eq]88.3 kg
Power consumption from the backplane bus70 mW
Limitation of inductive shutdown voltage toMax. -1.5 V
Color code for module-specific color-coded labelCC52
— global warming potential, (during operation) [CO2 eq]76.6 kg
— global warming potential, (during production) [CO2 eq]13.1 kg
— global warming potential, (after end of life cycle) [CO2 eq]-1.37 kg
Input characteristic curve in accordance with IEC 61131, type 1Yes
