Active

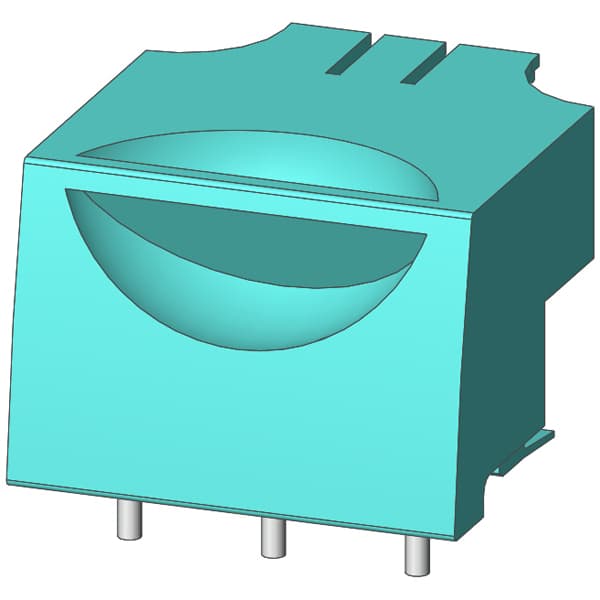

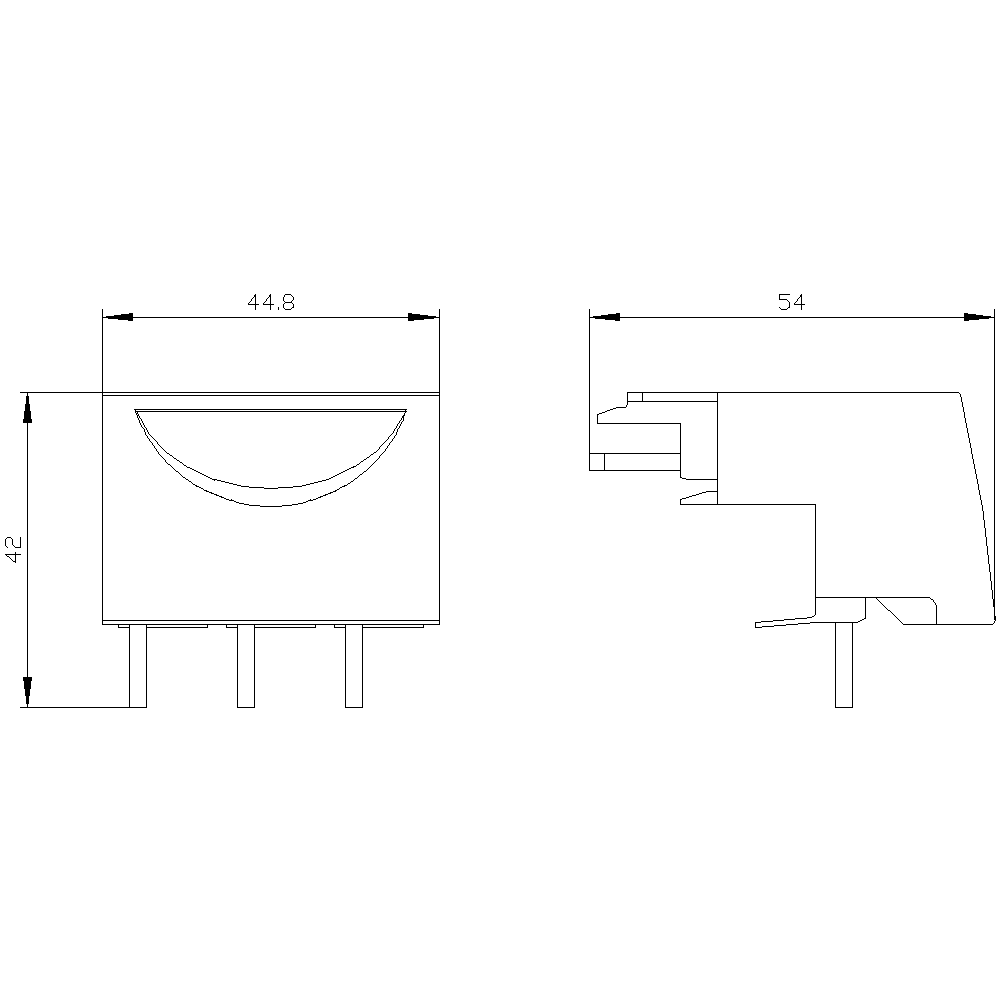

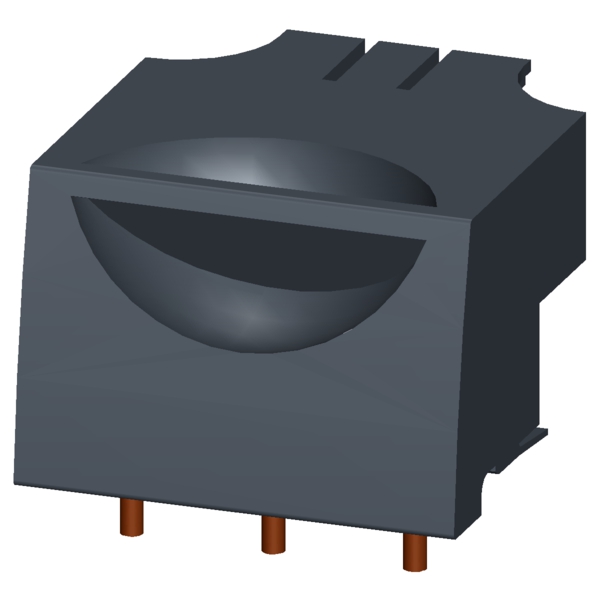

cable connector for circuit breaker Size S0 with screw terminal (individual unit packaging)
Part Number: 3RV1927-5AA00
Brand
Category
Busbar adapter
Siemens 3RV1927-5AA00. cable connector for circuit breaker Size S0 with screw terminal (individual unit packaging).
Specifications
Mechanical
Net Weight0.046 kg
Other
thermal current32 A
product categoryInfeed systems
product brand nameSIRIUS
product designationConnection plug
short-circuit ratingsee table in the operating instructions
suitability for usecircuit-breakers 3RV2
product type designation3RV19
size of the circuit-breakerS0
Substance Prohibitance (Date)07/01/2006
operational current rated value32 A
operating voltage at AC rated value690 V
number of poles for main current circuit3
operating voltage at AC according to UL rated value600 V
type of calculation of power loss depending on polequadratic
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
type of electrical connection for main current circuitplug-in without terminals
protection class IP on the front according to IEC 60529IP20
power loss [W] for rated value of the current at AC in hot operating state per pole1.6 W
