Active

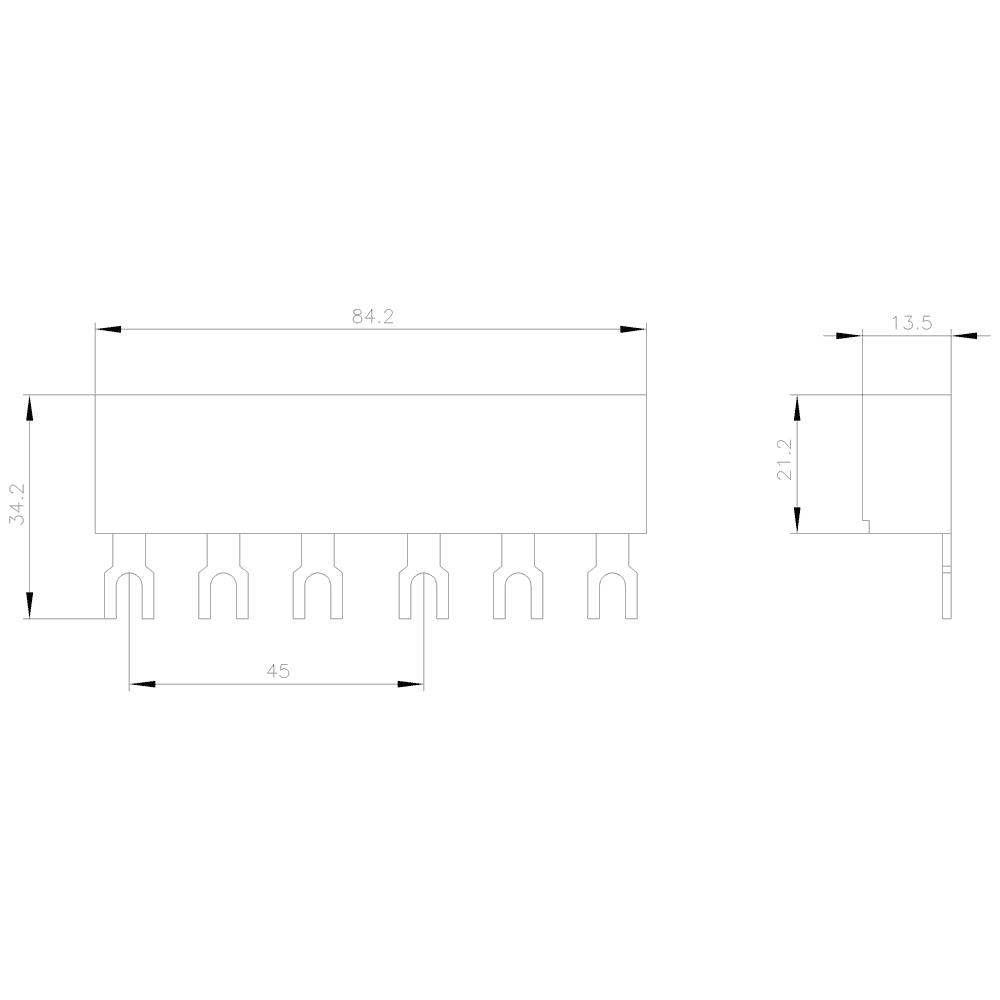

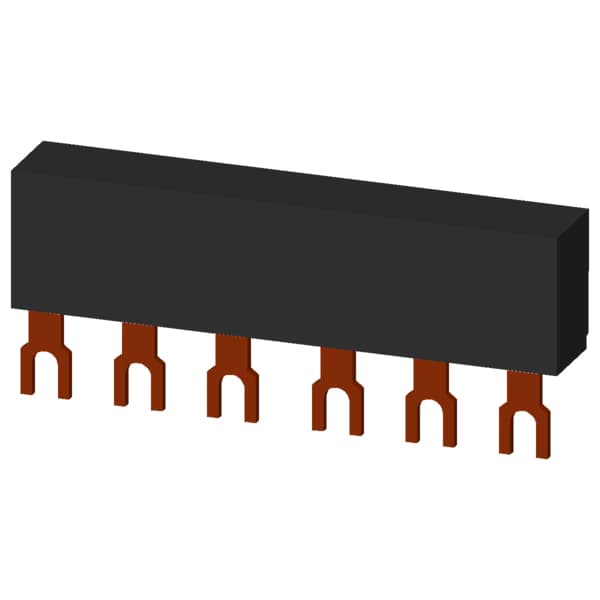

3-phase busbars modular spacing 45 mm for 2 breakers fork shape connections
Part Number: 3RV1915-1AB
Brand
Category
Busbar adapter
Siemens 3RV1915-1AB. 3-phase busbars modular spacing 45 mm for 2 breakers fork shape connections.
Specifications
Mechanical
Net Weight0.04 kg
Other
product categoryInfeed systems
product brand nameSIRIUS
product designation3-phase busbar
suitability for usecircuit-breakers 3RV2
product type designation3RV19
size of the circuit-breakerS00, S0
Substance Prohibitance (Date)07/01/2006
operational current rated value63 A
number of poles for main current circuit3
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
type of electrical connection for main current circuit
