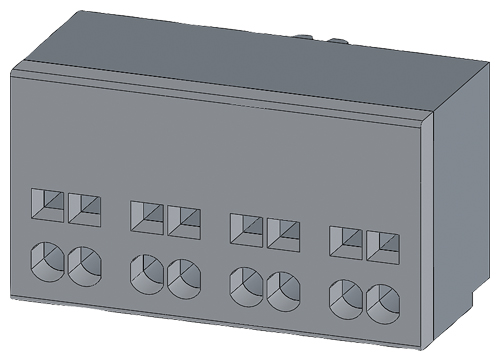

Name: Auxiliary switch 2 NC contacts Connection control circuit: Spring-type terminal
Brand: Siemens
SKU: 3RA6912-2A
Availability: InStock

Specifications

Dimensions

Width45 mm

Height32 mm

Depth25 mm

Other

stripped length10

product brand nameSIRIUS

product designationauxiliary switch compact feeder

— with core end processing2x (0.25 ... 1.5 mm²)

certificate of suitabilityIEC / EN 60947-6-2

— without core end processing2x (0.25 ... 2.5 mm²)

relative humidity during operation10 ... 90

reference code according to EN 61346-2K

number of NC contacts for auxiliary contacts2

Downloads

3RA6912-2A_doc_0 3RA6912-2A_doc_1 3RA6912-2A_doc_2

M56340-A0079
