Active
Main circuit terminals Inclusion and connection Main circuit: Spring-type terminal
Part Number: 3RA6920-2A
Brand
Category
Rail terminal bar

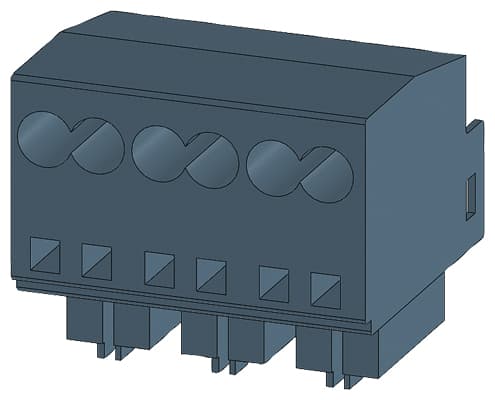

Siemens 3RA6920-2A. Main circuit terminals Inclusion and connection Main circuit: Spring-type terminal.
Specifications

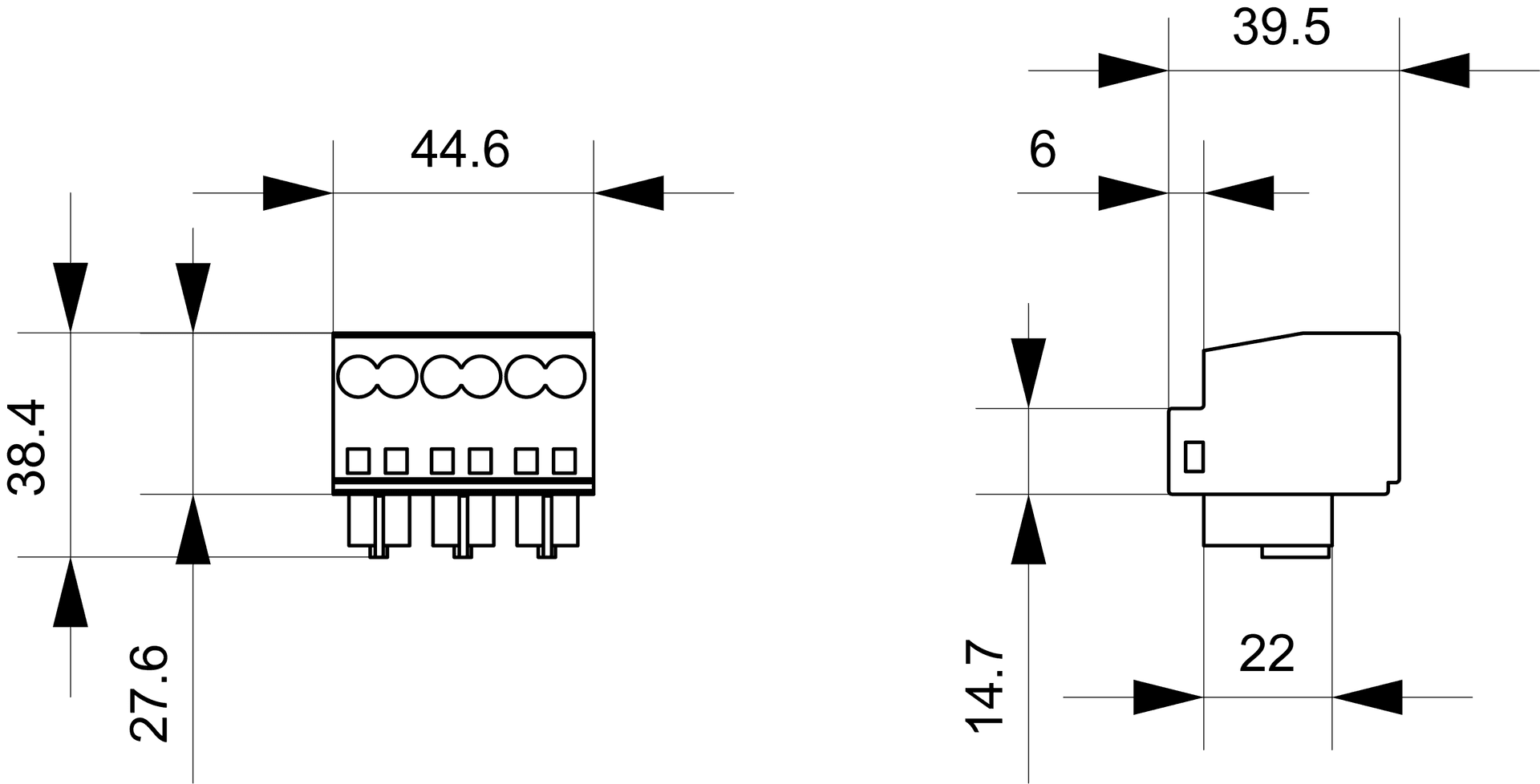

Dimensions
Width45 mm
Height32 mm
Depth30 mm
Other
— solidup to 12 A: 2x (1.5 ... 6 mm²), up to 32 A: 2x (2.5 ... 6 mm²)
stripped length10
product brand nameSIRIUS
product designationmain circuit terminals (ingoing as well as outgoing)
certificate of suitabilityIEC / EN 60947-6-2
relative humidity during operation10 ... 90
reference code according to EN 61346-2X
— finely stranded with core end processingup to 12 A: 2x (1.5 ... 6 mm²), up to 32 A: 2x (2.5 ... 6 mm²)
touch protection on the front according to IEC 60529
