Active

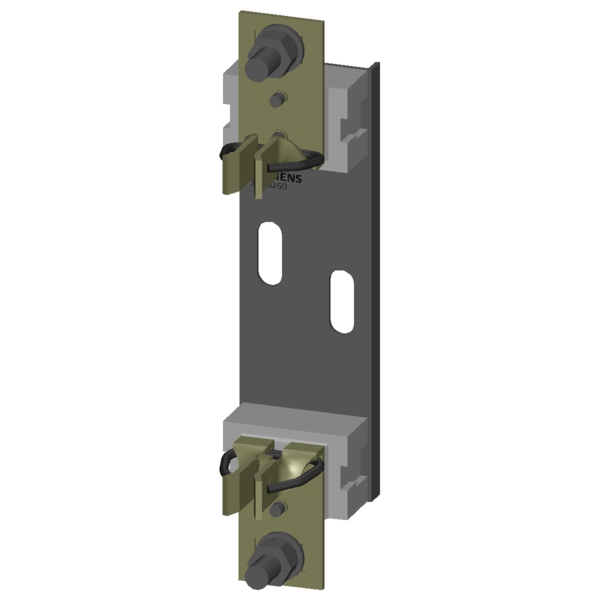

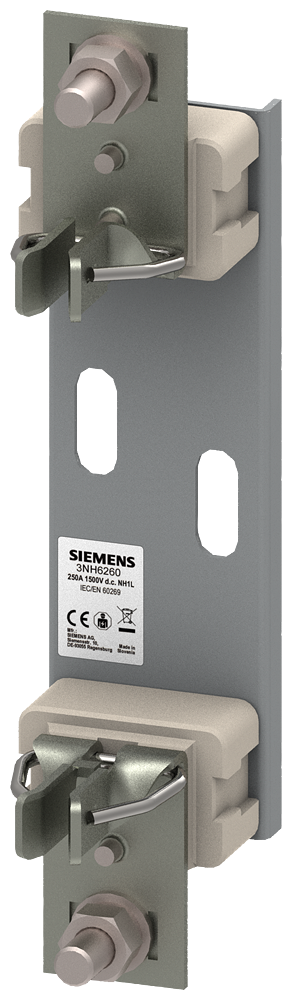

HRC fuse base ceramic Sz. 1L 1-pole 250A 1500V flat terminal
Part Number: 3NH6260
Brand
Category
Low Voltage HRC fuse base
Siemens 3NH6260. HRC fuse base ceramic Sz. 1L 1-pole 250A 1500V flat terminal.
Specifications
Mechanical
Net Weight707 g

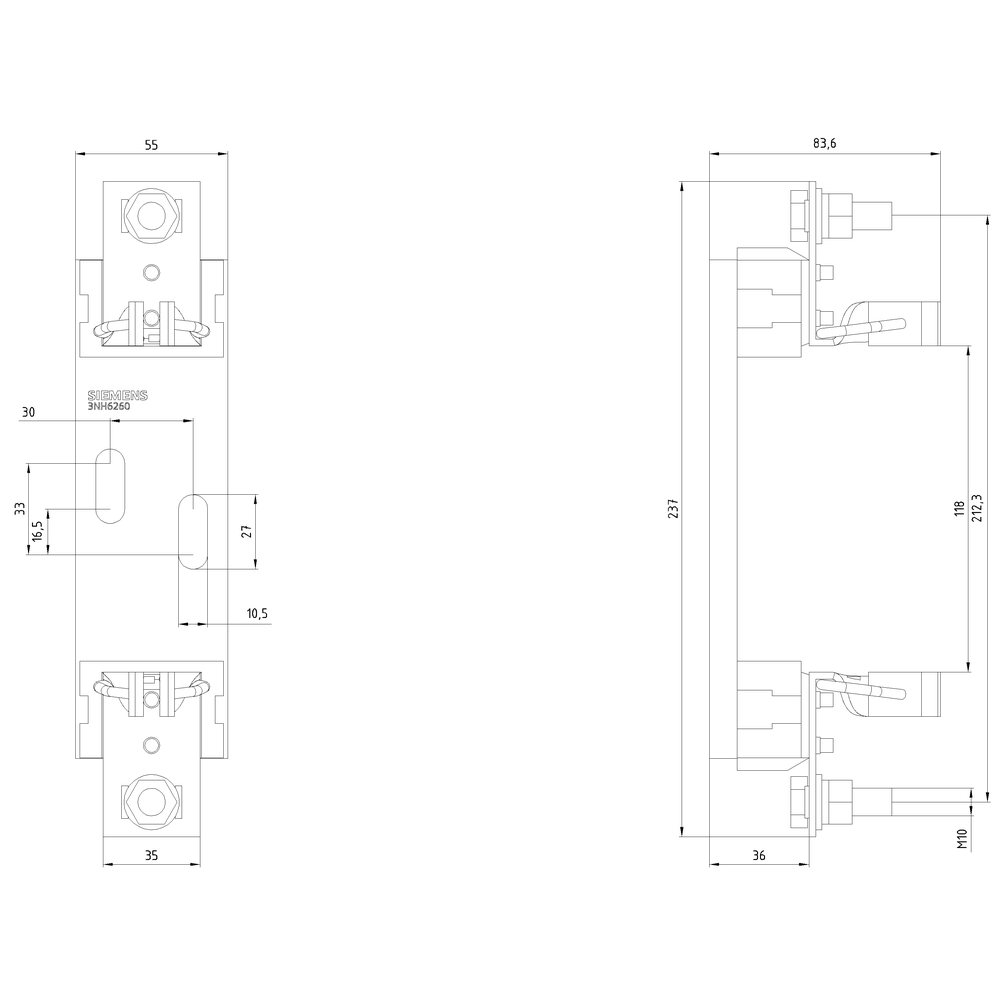

Dimensions
Width55 mm
Height237 mm
Depth84 mm
Other
number of poles1
fastening methodfixed mounting
product brand nameSENTRON
product designationLV HRC fuse base
utilization categoryWithout
fastening method bus-mountingNo
type of electrical connectionWith flat-type terminal
design of the thread of the nutM10
product component swivel-in mechanismNo
size of fuse system according to EN 60269-1NH1L
design of the thread of the connection screwM10
tightening torque with screw-type terminals maximum32 N·m
tightening torque of the screw for securing the equipment maximum6 N·m
