Active
HRC fuse base plastic Sz. 00
Part Number: 3NH1030
Brand
Category
Low Voltage HRC fuse base

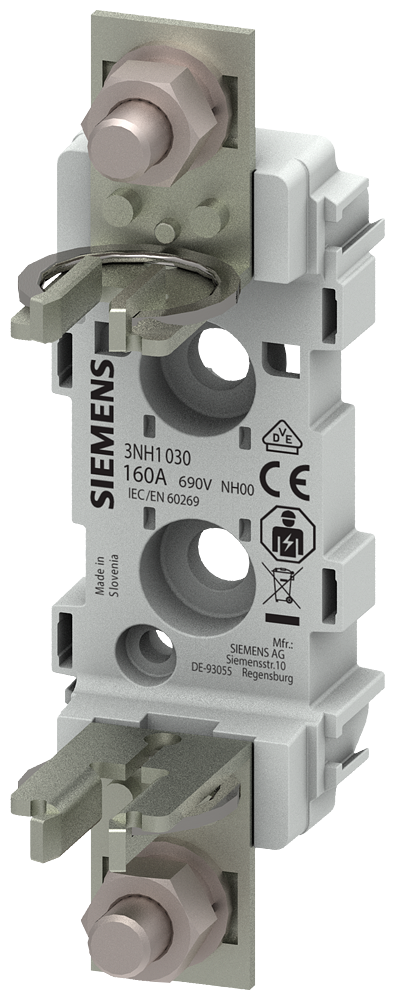

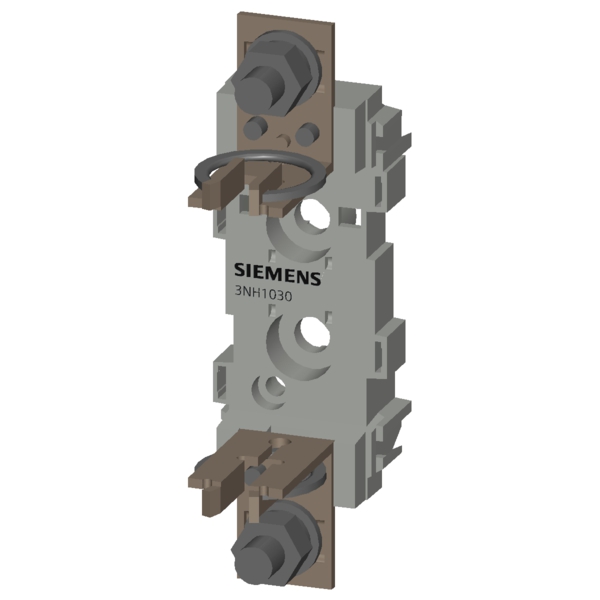

Siemens 3NH1030. HRC fuse base plastic Sz. 00, 1-pole 160A 690V flat terminal.
Specifications
Mechanical
Net Weight130 g

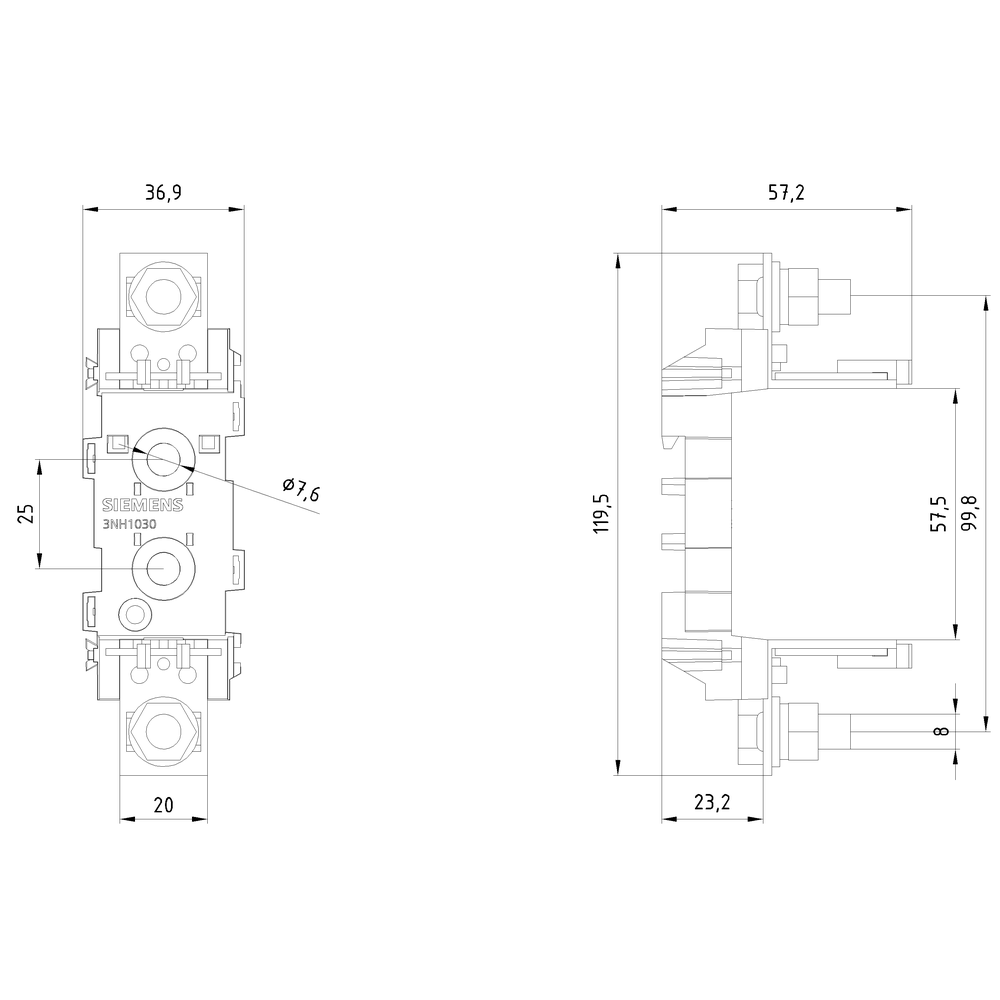

Dimensions
Width37 mm
Height120 mm
Depth57 mm
Other
number of poles1
fastening methodfixed mounting
product brand nameSENTRON
product designationLV HRC fuse base
utilization categoryWithout
fastening method bus-mountingNo
type of electrical connectionWith flat-type terminal
design of the thread of the nutM8
product component swivel-in mechanismNo
size of fuse system according to EN 60269-1NH00
design of the thread of the connection screwM8
tightening torque with screw-type terminals maximum10 N·m
tightening torque of the screw for securing the equipment maximum3 N·m
