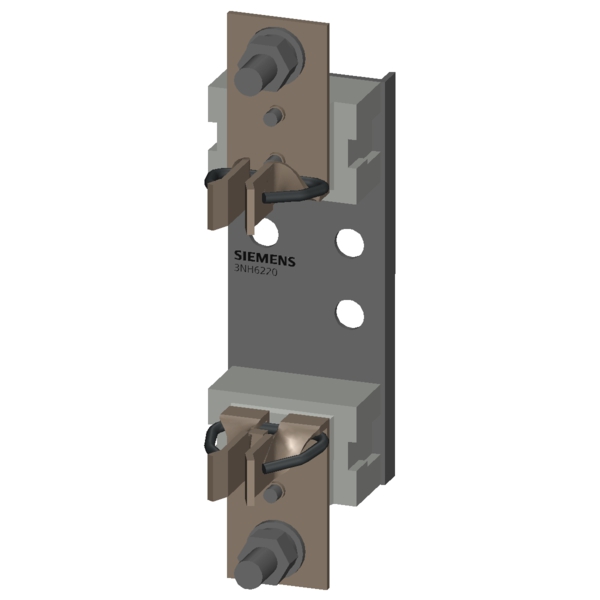

HRC fuse base ceramic Sz. 1 1-pole 250A 690V (1000V) double busbar terminal
Part Number: 3NH6220
Brand
Category
Low Voltage HRC fuse base
Siemens 3NH6220. HRC fuse base ceramic Sz. 1 1-pole 250A 690V (1000V) double busbar terminal.
Specifications
Mechanical
Net Weight650 g
Dimensions
Width55 mm
Height200 mm
Depth84 mm
Other
number of poles1
fastening methodfixed mounting
product brand nameSENTRON
product designationLV HRC fuse base
utilization categoryWithout
fastening method bus-mountingNo
type of electrical connectiondouble busbar terminal
design of the thread of the nutM10
product component swivel-in mechanismNo
size of fuse system according to EN 60269-1NH1
design of the thread of the connection screwM10
tightening torque with screw-type terminals maximum32 N·m
tightening torque of the screw for securing the equipment maximum6 N·m
