Accessory for 3KD size 1 Direct operating mechanism
Part Number: 3KD9101-1
Brand
Category
Door coupling handle for switchgear

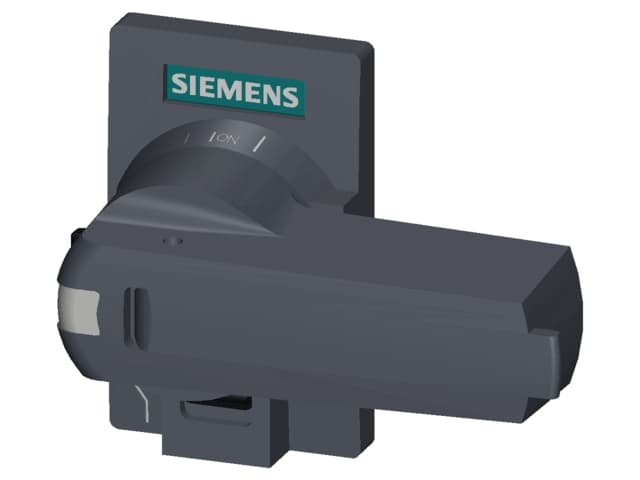

Siemens 3KD9101-1. Accessory for 3KD size 1 Direct operating mechanism, for front operating mechanism, grey, Standard version can be locked in OFF position with three padlocks.
Specifications
Mechanical
Net Weight125 g

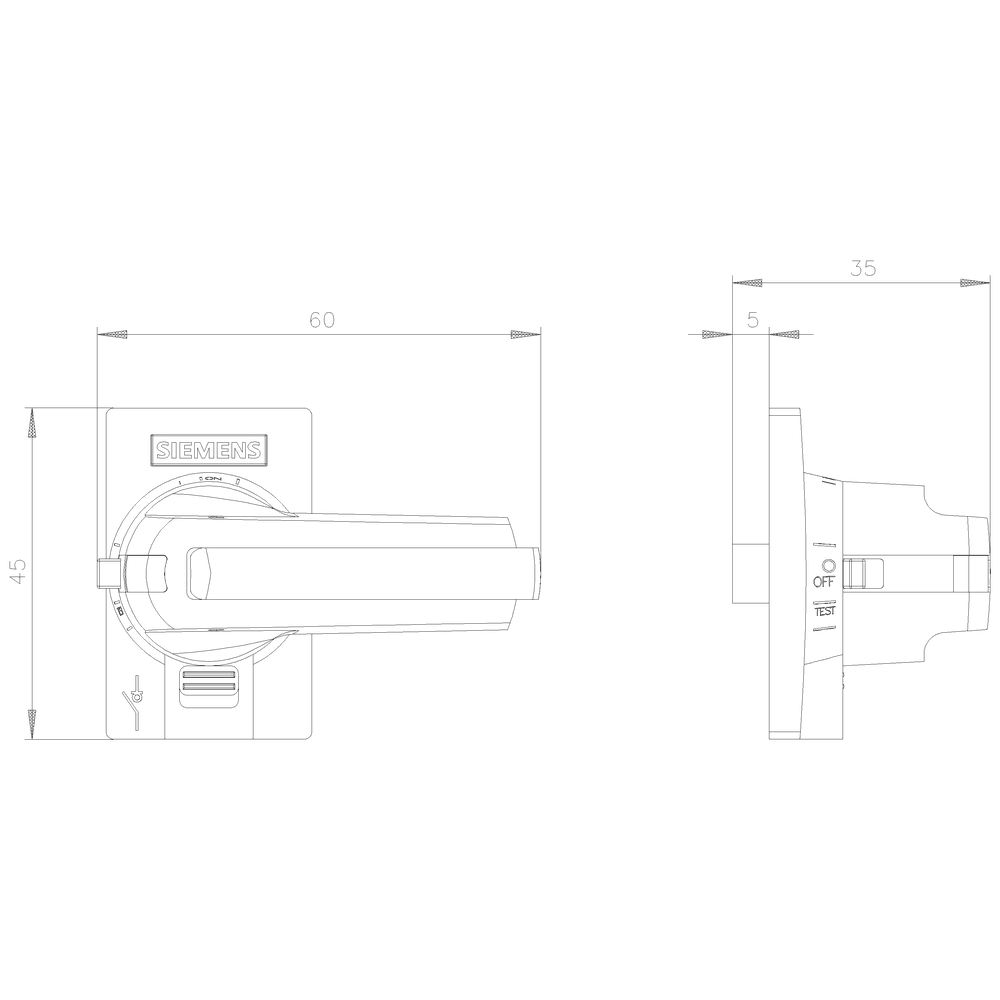

Dimensions
Width60 mm
Height45 mm
Depth35 mm
Other
product brand nameSENTRON
product designationAccessories for switch disconnectors
suitability for useFor 3KD, size 1
design of the productDirect operating mechanism
product feature interlockYes
type of the driving mechanismManual operating mechanism
color of the actuating elementgray
protection class IP on the frontIP30
display version for switch position indicatorON-OFF-TEST
product feature can be locked into OFF positionYes
