Active
accessories for 3KC0 size 3
Part Number: 3KC9301-2
Brand
Category
Door coupling handle for switchgear

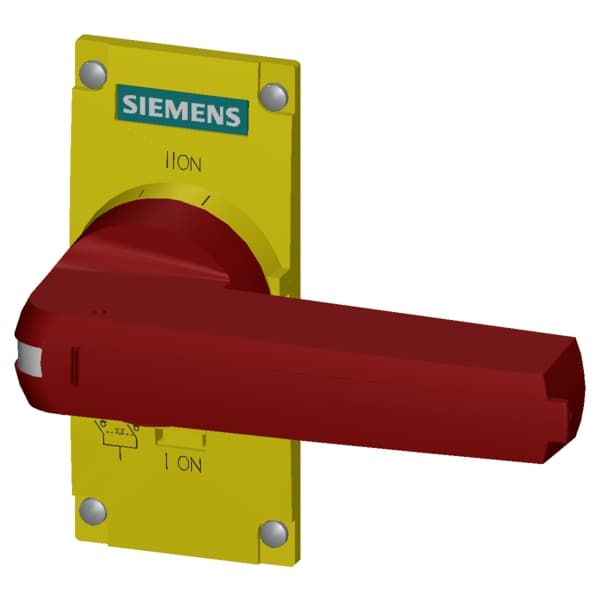

Siemens 3KC9301-2. accessories for 3KC0 size 3, direct operating mechanism, yellow/red, with cover, for 3KC0 size 3, 3 and 4-pole, 1 unit.
Specifications
Mechanical
Net Weight229 g

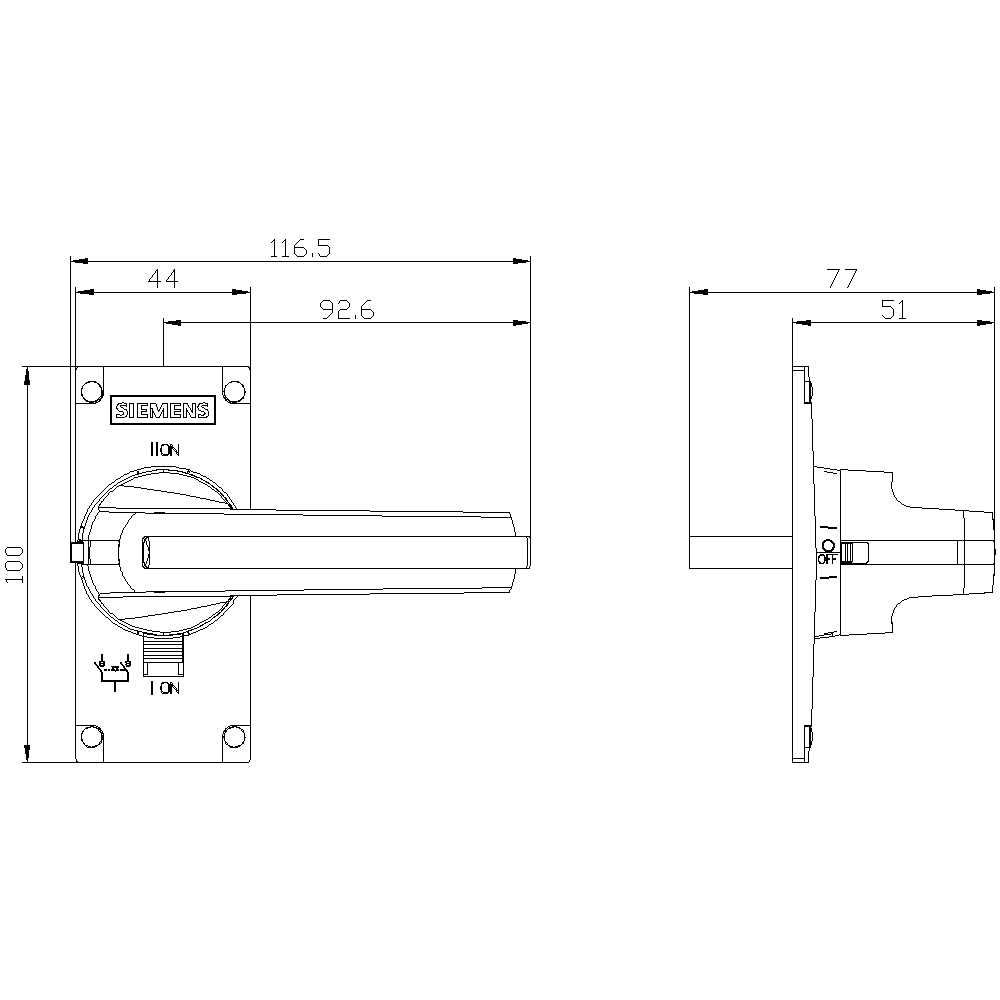

Dimensions
Width116 mm
Height100 mm
Depth77 mm
Other
product brand nameSENTRON
product designationAccessories for transfer switching equipment
suitability for useFor 3KC MTSE, size 3
design of the productDirect operating mechanism
product feature interlockYes
type of the driving mechanismManual operating mechanism
color of the actuating elementRed/Yellow
protection class IP on the frontIP30
display version for switch position indicatorI-O-II
product feature can be locked into OFF positionYes
