Active
Accessory for 3KD size 1 Direct operating mechanism
Part Number: 3KD9101-0
Brand
Category
Door coupling handle for switchgear

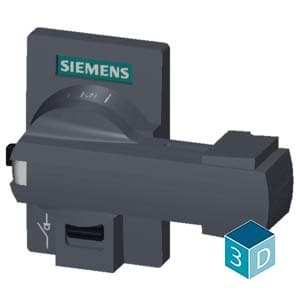

Siemens 3KD9101-0. Accessory for 3KD size 1 Direct operating mechanism, for front operating mechanism, grey Flat version can be locked in OFF position with a padlock.
Specifications
Mechanical
Net Weight112 g

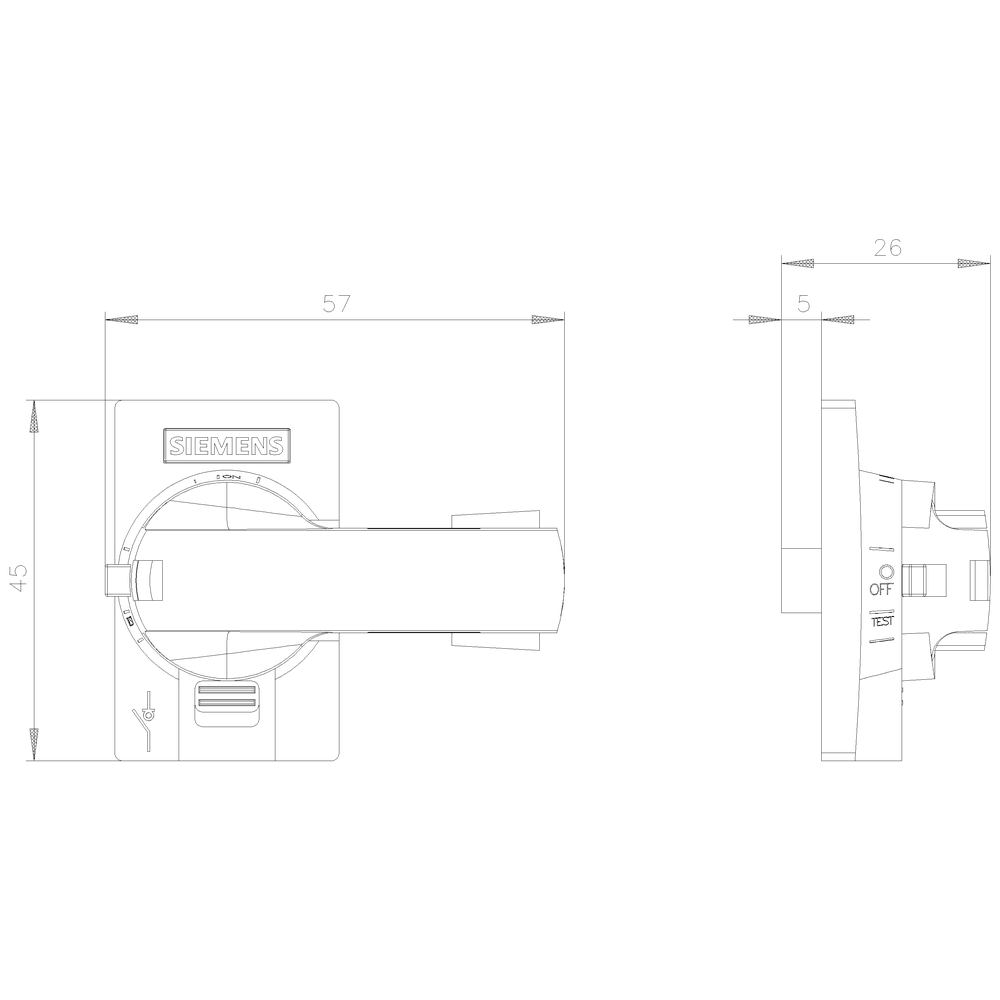

Dimensions
Width57 mm
Height45 mm
Depth27.5 mm
Other
product brand nameSENTRON
product designationAccessories for switch disconnectors
suitability for useFor 3KD, size 1
design of the productDirect operating mechanism DIN43880
product feature interlockYes
type of the driving mechanismManual operating mechanism
color of the actuating elementgray
protection class IP on the front
