Accessory for 3KD0 size 01/02 door-coupling rotary operating mechanism Complete operating mechanism
Part Number: 3KD9001-6
Brand
Category
Door coupling handle for switchgear
Siemens 3KD9001-6. Accessory for 3KD0 size 01/02 door-coupling rotary operating mechanism Complete operating mechanism, red/yelllow without tolerance compensation, shaft 6x6, 300mm.
Specifications
Mechanical
Net Weight221 g

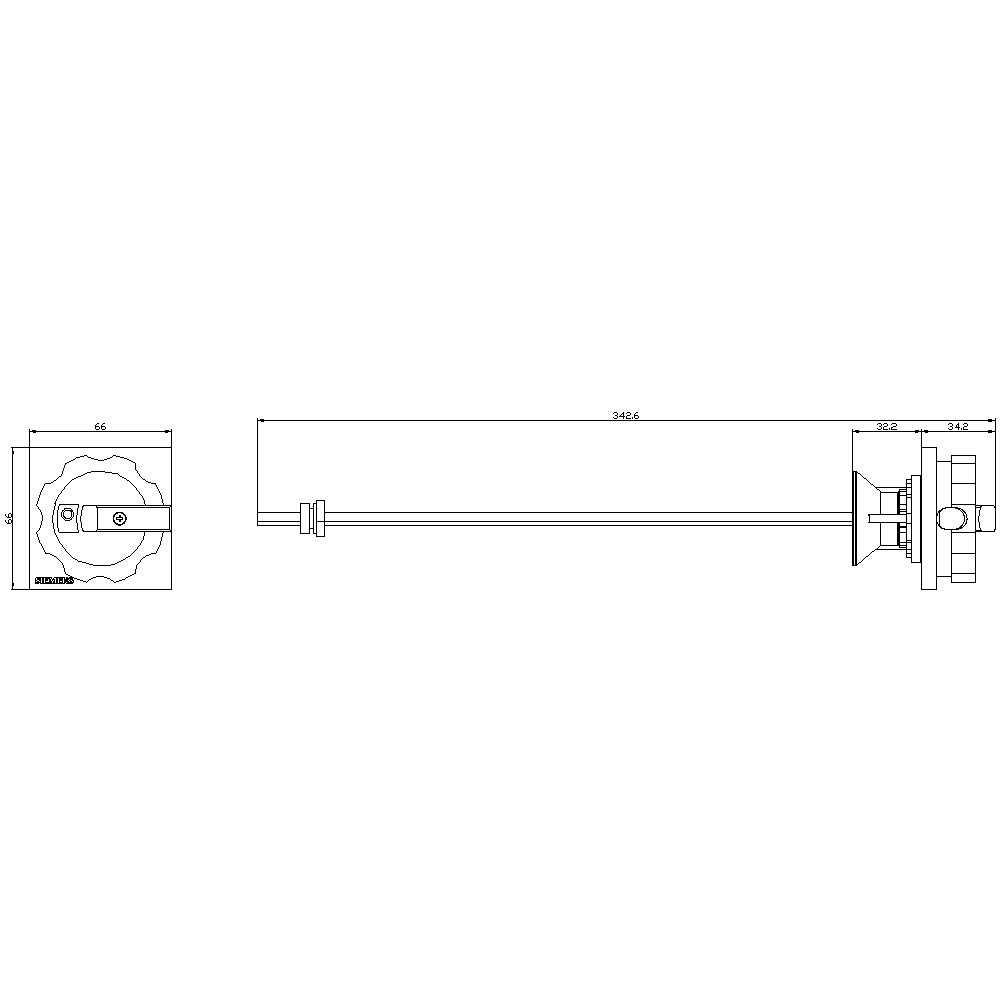

Dimensions
Width66 mm
Height66 mm
Depth342.6 mm
Other
product brand nameSENTRON
product descriptionINCL DRIVE SHAFT AND COUPLING DRIVER
product designationAccessories for switch disconnectors
suitability for usefor 3KD, size 01 and 02
design of the productDoor-coupling rotary operating mechanism
product feature interlockYes
length of the extension shaft300 mm
type of the driving mechanismManual operating mechanism
color of the actuating elementRed/Yellow
protection class IP on the frontIP65
display version for switch position indicatorON-OFF
product feature can be locked into OFF positionYes
