Active
accessories for 3KC0 size 4
Part Number: 3KC9401-2
Brand
Category
Door coupling handle for switchgear

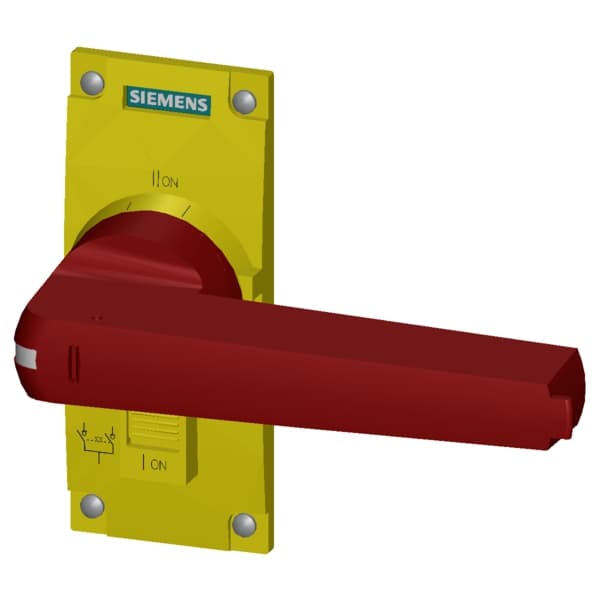

Siemens 3KC9401-2. accessories for 3KC0 size 4, direct operating mechanism, yellow/red, with cover, for 3KC0 size 4, 3 and 4-pole, 1 unit.
Specifications
Mechanical
Net Weight575 g

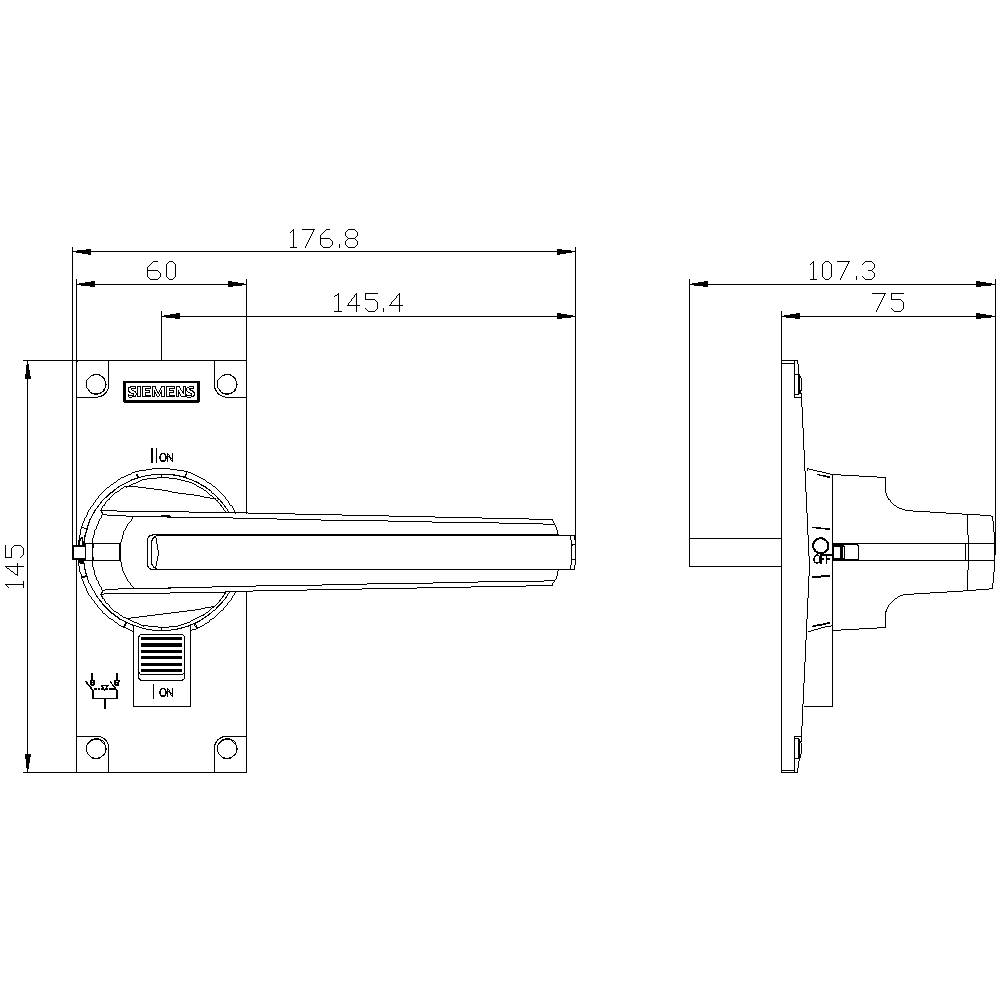

Dimensions
Width177 mm
Height145 mm
Depth107 mm
Other
product brand nameSENTRON
product designationAccessories for transfer switching equipment
suitability for useFor 3KC MTSE, size 4
design of the productDirect operating mechanism
product feature interlockYes
type of the driving mechanismManual operating mechanism
color of the actuating elementRed/Yellow
protection class IP on the front
