ASYMTEK High Resolution Monocle Vision Package MVP

Merek

Kunjungi Situs Web

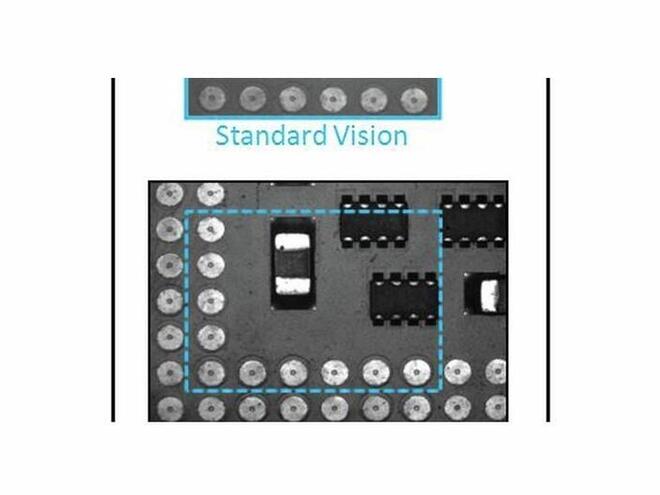

Nordson ASYMTEK's Monocle™ Vision Package (MVP) offers larger fields of view with higher resolution images that produce better targeting for accurate and consistent dot placement. The Monocle Vision Package (MVP) offers new capabilities to enhance automatic part and target dispense location recognition. The new capabilities can help you address dispensing challenges such as increasingly smaller packaging and devices, increased densities of boards and wafers, and limited substrate contrast or reflectivity. Utilizing a new, high-resolution 1.4 megapixel camera, telecentric optical lenses, five independently controlled on- and off-axis light sources, and new software fiducial finding capabilities, the MVP easily handles new vision system challenges to enhance total system wet dispense accuracy. The MVP high-resolution image capture provides an expanded field of view (up to 20 mm x 15 mm), and smaller pixel-to-micron ratios improve fiducial finding – achieving more accurate targeting of your desired dispense position. The telecentric lenses further improve fiducial finding accuracy when fiducials are off-center from the field of view, reducing parallax errors that can occur with more traditional optics by as much as 30 µm. Independent on- and off-axis lighting controls allow you to create contrast so you can adequately view a substrate even in highly reflective or diffuse lighting conditions. New software features built into Nordson ASYMTEK’s Fluidmove® software further enhance productivity and equipment up-time. If you receive substrates from more than one supplier, you might encounter a variance in the reflectivity of the substrates. When the substrate reflectivity varies across batches, alternate fiducial chains allow the dispensing system to adjust automatically – leading to reduced operator dependence. When you need to maintain a single program across multiple dispense systems, your dispense pattern can be automatically changed by finding different fiducials. When you have parts with non-rectangular, "odd form" fiducials, new shape finding capabilities can locate these "odd-form" shapes to achieve accurate fiducial finds and dispense location targets. The Monocle Vision Package is the vision system you want when you need to find a target dispense location automatically and accurately - every time. Combination on- and off-axis lighting in a single package Increased resolution and a larger field of view Improved fiducial find accuracy Digital zoom capabilities in Fluidmove software allow operators to get a close-up view of parts even with low magnification optics New lens options improve fiducial finding accuracy at the edges of the field of view Available on Spectrum series systems
